Product specifications

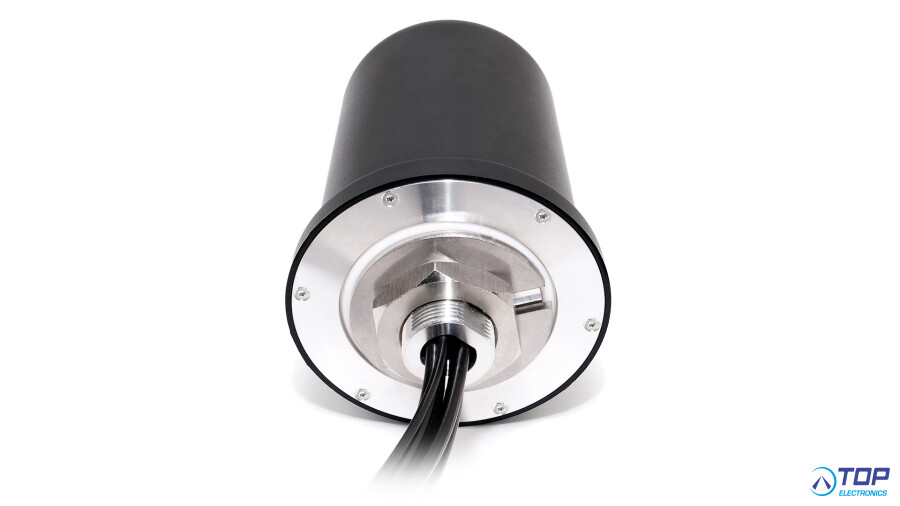

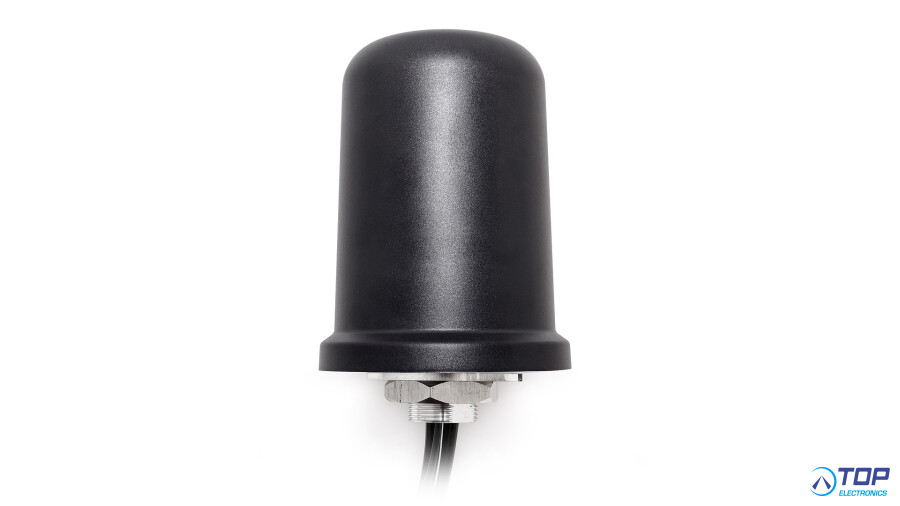

2J7183Bc
4 x High Performance Antenna 5G NR/4G LTE/3G/2G MIMO
General Specification
Frequency: 4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Mounting: Screw Mount
Dimensions (mm): Ø 96 x H 130
Operating temperature: -40 °C to +85 °C
Certificates: IP67, IP69, IK09
Standard colors: Black and White
Connection 1
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.5, ~-12.2, ~-15.2, ~-14.2
VSWR: ~3.7:1, ~2.0:1, ~1.5:1, ~1.6:1
Efficiency (%): ~31.0, ~41.6, ~41.6, ~36.9
Peak Gain (dBi): ~1.3, ~3.4, ~4.7, ~4.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
Connection 2
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.6, ~-12.7, ~-15.3, ~-16.0
VSWR: ~3.7:1, ~1.9:1, ~1.5:1, ~1.5:1
Efficiency (%): ~31.2, ~41.4, ~42.4, ~33.1
Peak Gain (dBi): ~1.2, ~3.6, ~4.6, ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
Connection 3
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.4, ~-12.9, ~-16.7, ~-12.4
VSWR: ~3.7:1, ~1.8:1, ~1.4:1, ~1.8:1
Efficiency (%): ~31.5, ~41.6, ~40.3, ~38.5
Peak Gain (dBi): ~1.3, ~3.8, ~4.5, ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
Connection 4
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.7, ~-12.8, ~-16.8, ~-15.4
VSWR: ~3.5:1, ~1.8:1, ~1.5:1, ~1.5:1
Efficiency (%): ~31.2, ~41.8, ~42.5, ~35.0
Peak Gain (dBi): ~1.6, ~3.4, ~4.6, ~3.9
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
