Product specifications
2JW1183-C952B

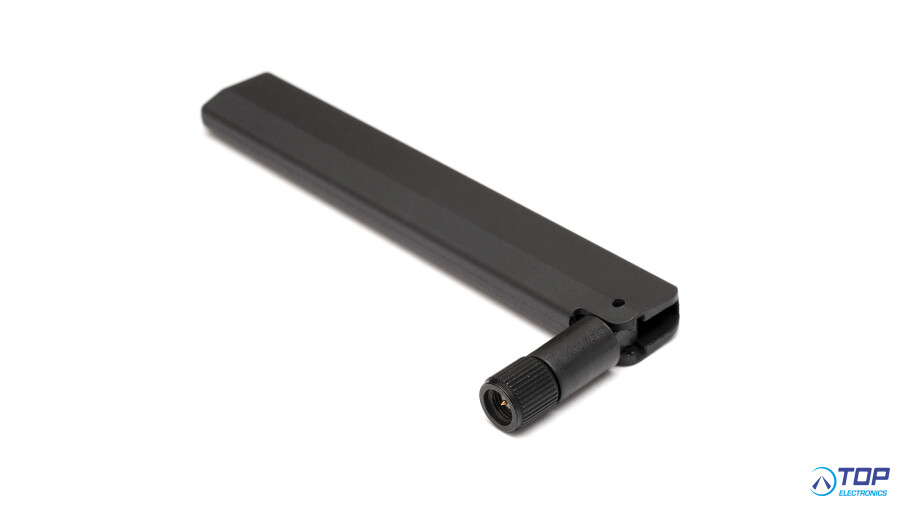

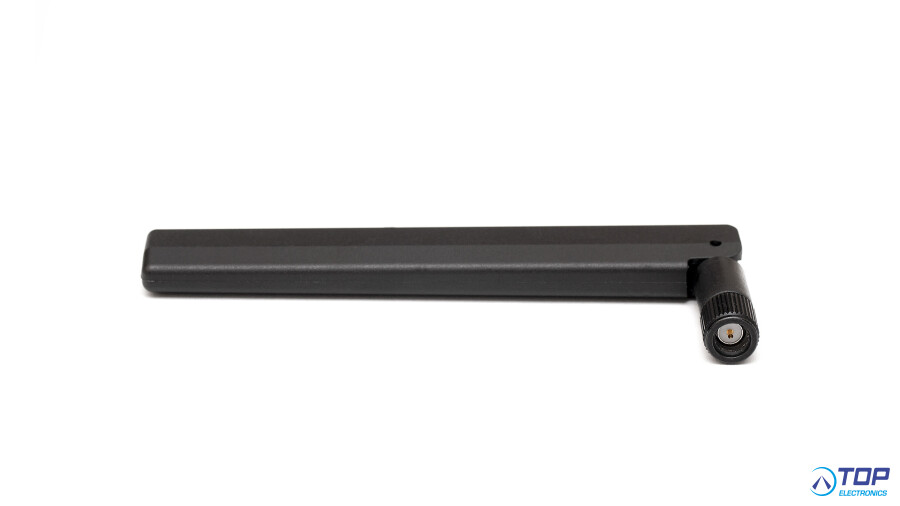

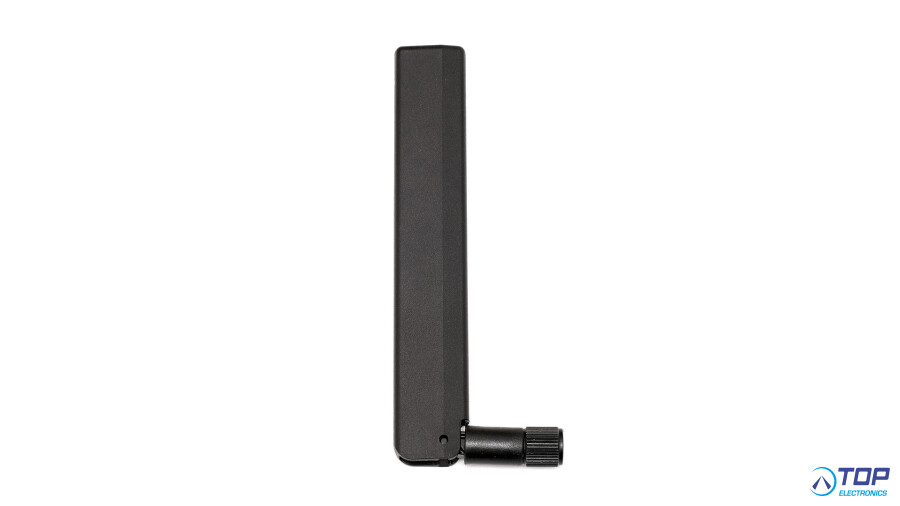

5G NR/4G LTE/3G/2G Ultra Wide band Hinged Connector Antenna
General Specification
Frequency: 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Mounting: Connector Mount
Dimensions (mm): 135 × 19 × 10
Operating temperature: -40 °C to +85 °C
Standard colors: Black
Antenna and electrical specifications
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-11.2, ~-10.7, ~-11.4, ~-8.8
VSWR: ~2.0:1, ~2.6:1, ~2.3:1, ~2.2:1
Efficiency (%): ~37.6, ~43.3, ~35.1, ~41.9
Peak Gain (dBi): ~-1.1, ~0.5, ~0.3, ~1.6
Impendance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
