Product specifications
YEMN016AA

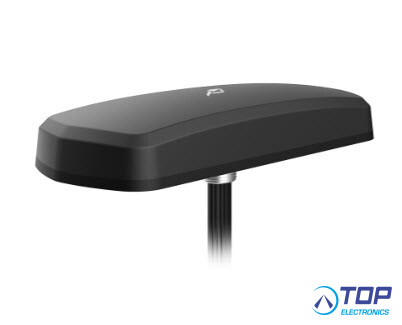

5G Screw Mount Low Profile 5-in-1 Combo Antenna Box
This ultra-wide-band 5G/4G antenna box provides broad coverage from 600-6000MHz whilst backward-compatible to support 3G/2G networks as well at Cat-M and NB-IoT. The combo antenna is designed to work with various GND plane sizes or in free space for ease of integration with connection, with connection via 5 cables of customizable length between 300-5000mm, terminated with SMA connectors.
This screw mount omnidirectional IoT antenna is easy to install with maximum durability with its IP67 & IP69 KIBILAC® ASA enclosure. It is compatible with Quectel's RM520x Series modules. Quectel provides comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key Features
- Optimized for 5G/4G networks
- 4 x 4 5G/4G MIMO
- GNSS L1 & L5
- Screw mount
- SMA (male) connector
- Durable KIBILAC® ASA housing
- Frequency range – LMHs: 600–960MHz, 1400–6000MHz
- Frequency range – MHs: 1400–6000MHz
- Frequency range – GNSS: 1166–1186MHz, 1559–1606MHz
- Dimensions: 204mm x 86.6mm x 31mm
- Cable lengths (various): 300-5000mm
- IP rating: IP67 & IP69K
- RoHS and REACH compliant
