Product specifications
YE0007AA

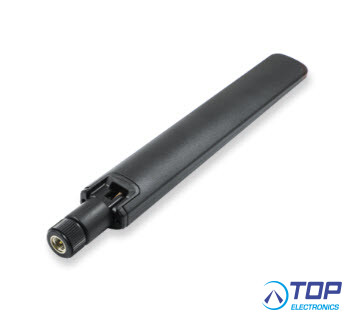

5G Terminal Mount Antenna
This ultra-wide-band 5G/4G terminal dipole antenna provides broad coverage from 600-6000MHz whilst backward-compatible to support 3G/2G networks as well at Cat M and NB-IoT. The antenna is designed to work with various GND plane sizes or in free space for ease of integration with a hinged SMA male connector to achieve the optimum position. This omnidirectional antenna is ideally suited for access points, terminals, industrial products and routers, offering great performance with its high gain and efficiency. Quectel provides comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key Features:
- Dipole terminal mount antenna
- Optimized for 5G networks
- IP rating: 55
- Durable ABS casing
- SMA Male connector (center pin)
- Frequency band: 600–6000MHz
- Dimensions: 152.4mm × 21.79mm × 14.49mm
- Peak efficiency: 75%
- RoHS compliant
- Quectel Wireless Solutions product -
