Product specifications

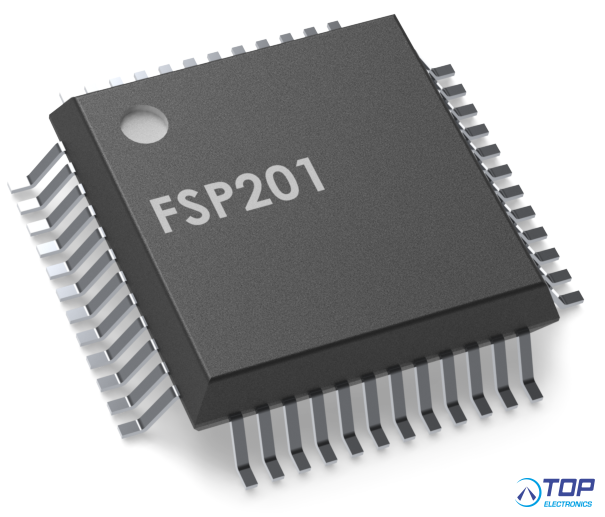

CEVA Hillcrest Labs - FSP201
MOQ FOR THIS PART IS 2000pcs.
If you require smaller quantity, please contact us for details.
A 6-axis sensor hub with embedded sensor fusion and specialized algorithms for robotics, XR, and 3D audio using your choice of consumer grade MEMS sensors
PRODUCT DESCRIPTION
The FSP201 integrates Hillcrest’s high-performance sensor hub software stack into a low-power 32-bit ARM Cortex M23 MCU. Additionally, it includes specialty algorithms designed for use in robotic navigation , XR, and 3D audio applications.
CEVA's Interactive Calibration utilizes state information from the robot itself to adjust the output accuracy of the FSP201. Turn-table calibration adjusts for the scale error of the gyroscope with an easy to implement simple factory setup.
The FSP201 also optimizes XR and 3D audio experiences. It boasts a game rotation vector impervious to changes in magnetic field, working in concert with smoothing algorithms that make adjustments undetectable.
With these features, this small, turn-key component benefits developers and integrators through faster time-to-market, reductions in development time, reduced BOM cost, and the highest precision and quality.
KEY PRODUCT ATTRIBUTES
- Sampling rate (Fused Outputs) up to 400 Hz
- Max Rate Angle ± 2000°/sec
- Power Consumption 2.3 mA (@3V)
- Package LQFP(48)
- Dimensions 7.0 x 7.0 mm
FEATURES
- MotionEngine™ 6-Axis Sensor Fusion – Provides raw, calibrated and fused sensor orientation data with best in class heading accuracy and stability
- Choose Your Sensor – Low-cost MEMS sensors from top sensor vendors are supported
- Improved Performance – Working with our specialized Interactive Calibration software, top performance is achieved even with low-cost sensors
- Stabilized Game Rotation Vector – corrects orientation drift slowly and imperceptibly to the user to maintain immersion
- Dynamic Calibration – CEVA's algorithms constantly monitor changes in sensor performance and temperature during live operation to deliver the highest performance
- Intelligent Power Management – Manages sensor states to conserve power without sacrificing quality of motion data
- Auto-Centering – Dynamically recenters soundstage in 3D audio applications to eliminate drift
- Flexible Integration – I2C and simplified UART communication available
--- CEVA Hillcrest Labs product ---
