Product specifications
KD070HDFLA028

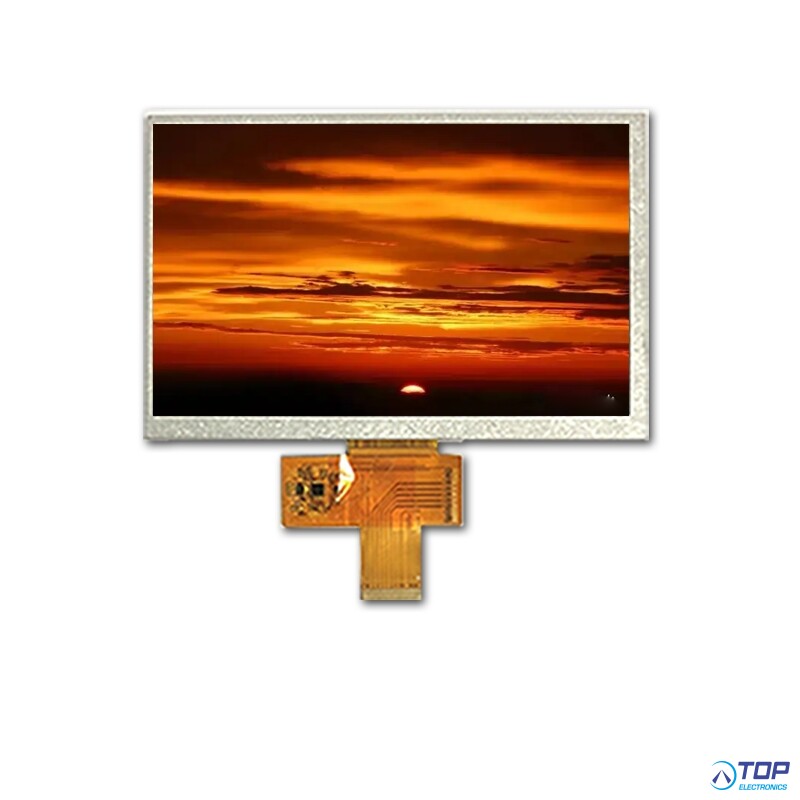

Startek 7" IPS Display
1.LCD Name：7.0-inch 1024*600 Full viewing angle，IPS TFT LCD display，6/8 bit LVDS interface
2.Part No.：KD070HDFLA028
3.Size：165*100*5.8mm
4.With touch panel or not：NO
5.Touch type：262K/16.7M
6.Display type：IPS
7.Display colors：262K/16.7M
8.Resolution：1024*600
9.Pixel Pitch：0.1506（H）*0.1432（V）
10.Viewing direction：ALL
11.Controller IC：EK73215&EK79001
12.Display mode：Transmissive/Normally Black
13.Overall size：165*100*5.8mm
14.Viewing area：155.41*87.12mm
15.Active Area：154.21*85.92mm
16.Lumiance：500cd/m2
17.Contrast：800
18.Interface type：6/8 BIT LVDS
19.Pin No.：40
20.Pin Pitch：0.5mm
21.Connecting type：pluggingtype
22.Input voltage：3.3V
23.Backlight type and color：White LED
24.Operating temperature range：-20~70℃
25.Storage Temperature range：-30~80℃
26.Compliant：ROHS
27.Certification of registration：ISO9001:2015、ISO13485:2016、TS16949:2015
