Product specifications
KD070WXFID050

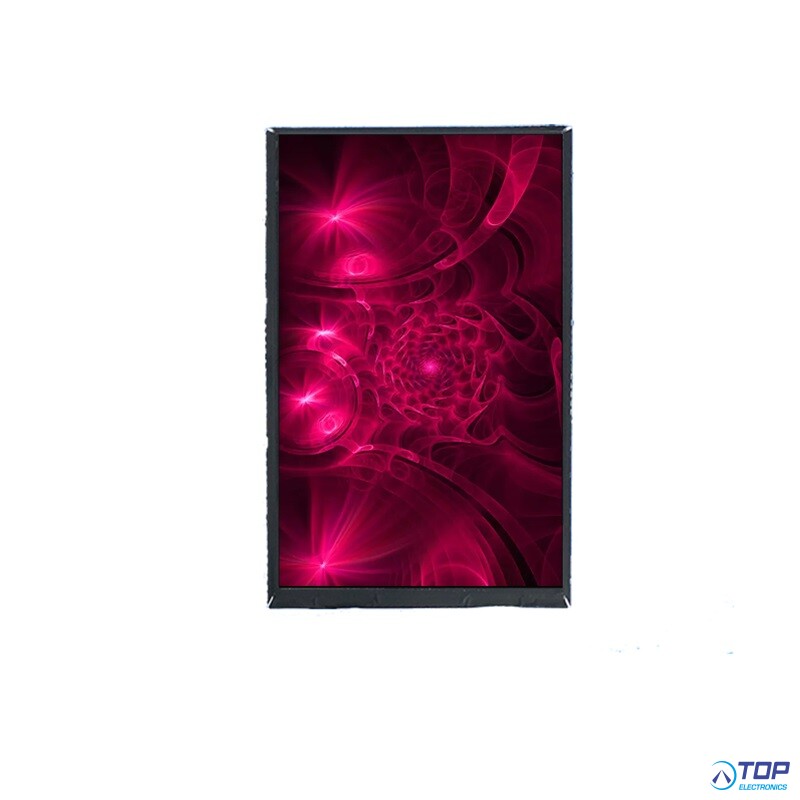

Startek 7" IPS Display
1.Product Name：7.0 inch 800*1280 MIPI interface full viewing angle IPS TFT LCD module
2.Part No.：KD070WXFID050
3.Size：7.0 inch
4.Resolution：800*1280
5.Interface：4-Lane MIPI
6.Display colors：16.7M
7.Driver IC：ILI9881C
8.Viewing angle：All
9.Display mode：Transmissive/Normally Black
10.Operating temperature：-20--+60℃
11.Storage temperature：-30--+70℃
12.Pixel Pitch：0.11775（H）*0.11775（V）mm
13.Outline dimension：103.56*162.38*2.7mm
14.Active area：94.2（H）*150.72（V）mm
15.Weight：90g
16.Pin No.：40PIN
17.Pin Pitch：0.5mm
18.Contrast：850
19.Luminance：450cd/m2
20.Vlotage：3.3V
21.Life span：50000h
22.Backlight：20LED，white
23.Compliant：ROHS
24.Certification of registration：ISO9001，ISO13485，IATF16949，ISO14001
