Product specifications
YB-TG1024600S11A-N-A

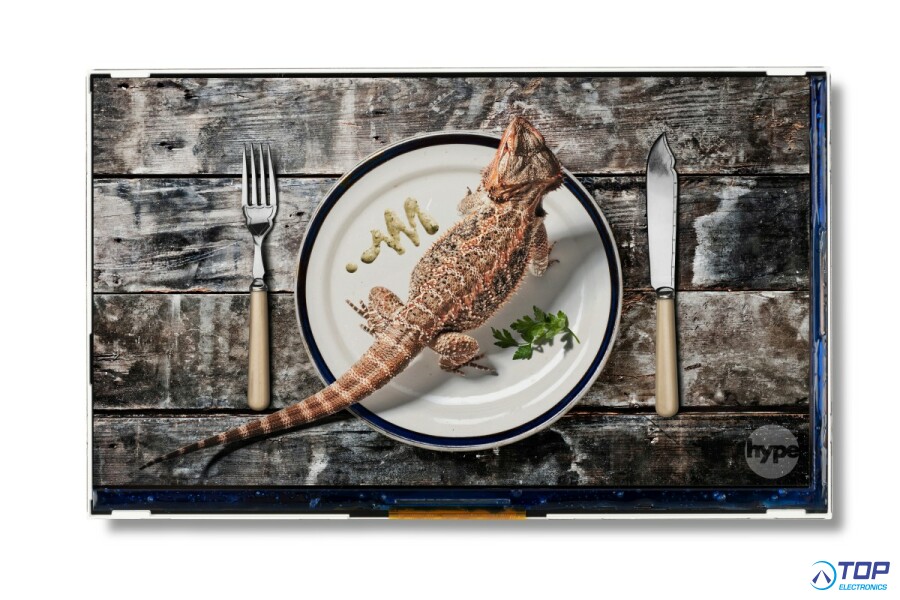

Yeebo 7" IPS TFT Display
Specifications:
Module Size: 164.8(W) * 99.9(H) * 2.75(T) mm
Module Size(With FPC): 164.8(W) * 159.9(H) * 2.75(T) mm
Display Size(Diagonal): 7.0 inch
Display Format: 1024(RGB)*600 Pixels
Active Area: 154.2144 (W) * 85.92 (H) mm
Pixel Pitch: 0.1506 * 0.1432 mm
LCD Type: TFT (16.7M) / Transmissive / Normally Black
View Angle: IPS Full viewing Angle
Brightness: 710nits
Controller IC: EK79001HN3 & EK73215BCGA
Weight: 90g
Interface: LVDS
