Product specifications
EuroQuartz
8.000MHz MJ2/20/30-4

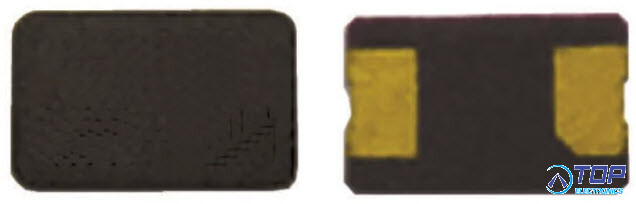

MJ2 crystals are miniature surface-mount crystals produced with a ceramic substrate and seam-welded metal lid. Their compact size and low mass make hem an ideal crystal for high-density applications
Frequency Range 8.0MHz to 50.0MHz: AT-Cut Fundamental 40.0MHz to 150.0MHz: AT-Cut 3rd Overtone Calibration Tolerance at 25ºC: from ±10ppm to ±100ppm Frequency stability over Temp: from ±10ppm to ±100ppm Operating Temperaure Range: -10° ~ +60°C to -40° ~ +85°C Storage Temperature: -40°~+85°C / -55° ~ +125°C Effective Series Resistance: See table Shunt Capacitance (C0): 2pF to 5pF typical, 7pF maximum Load Capacitance (CL): Series or from 6pF to SeriespF (Customer specified CL) Ageing: <±5ppm per year at +25°C Drive level: 100 mW maximum Insulation Resistance: 500MΩ min. at 100±15VDC Reflow Soldering: 10s maximum at 260°C 2 reflows maximum Package: Ceramic base, metal lid, Hermetic seal Packaging: 12mm EIA tape and reel 1000 pieces per reel
