Product specifications

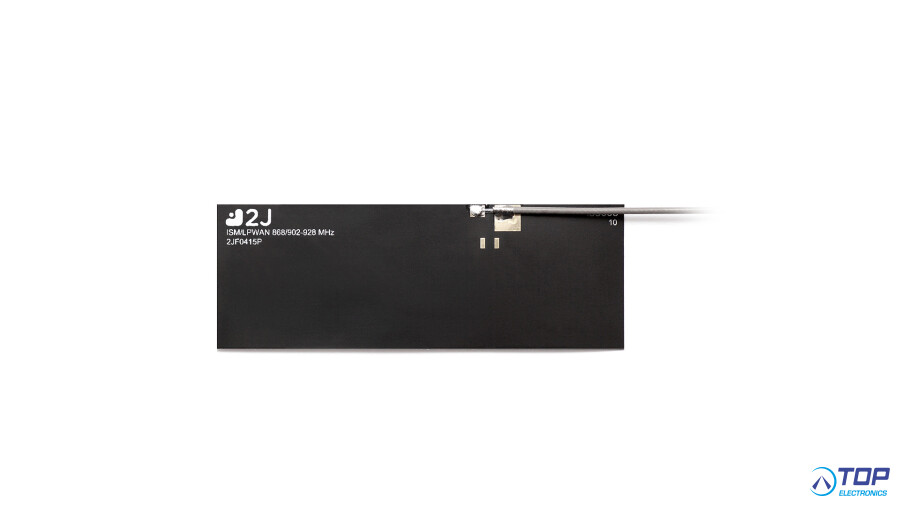

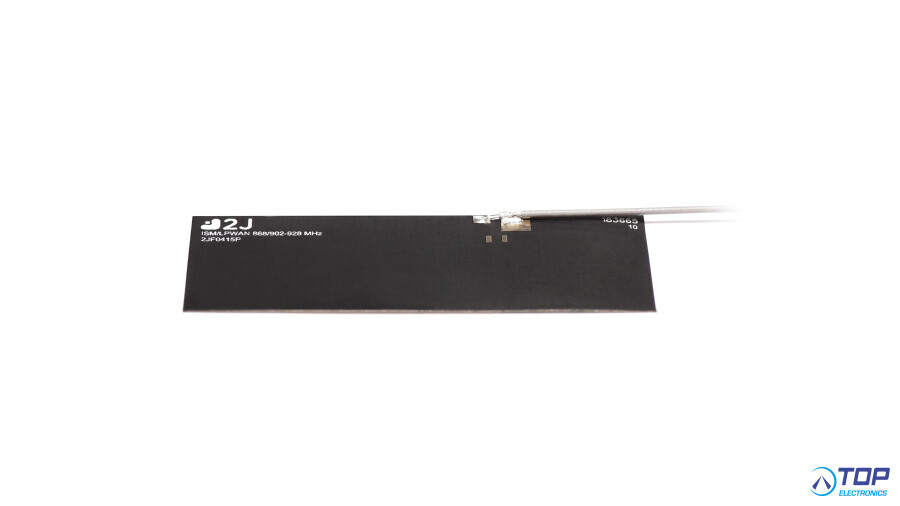

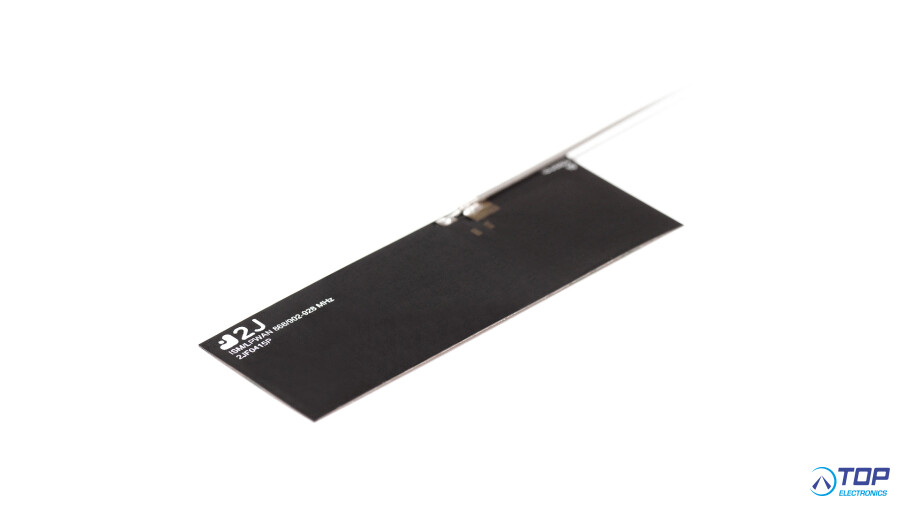

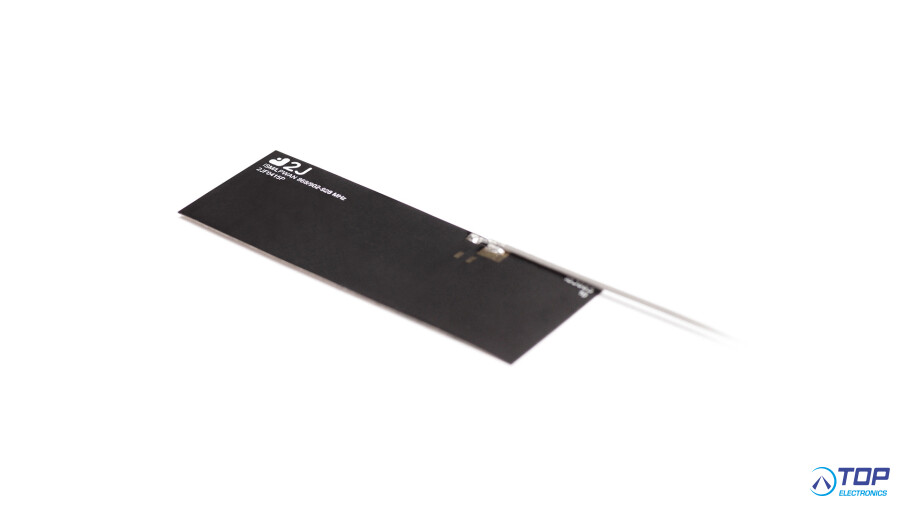

2JF0415P
868/915 MHz ISM Flexible ultra-thin PCB Adhesive Antenna
General Specification
Frequency: 868-915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM
Mounting: Adhesive Mount Flexible
Dimensions (mm): 25.0 x 70.0 x 0.2
Operating temperature: -40 °C to +85 °C
Antenna and electrical specifications
868/915 MHz ISM
Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928
VSWR: ~2.3:1, ~1.2:1
Efficiency (%): ~58, ~77
Peak Gain (dBi): ~2.7, ~3.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
