Product specifications
ERF4102

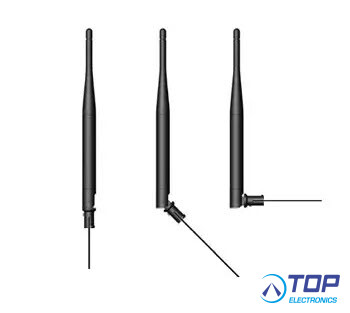

The ERF4102 is a 868/915Mhz antenna with 50 cm cable and U.FL connector, with hinged design.
The antenna can be used for applications such as, M2M, 868/915MHz , cellular, Wi-Fi, Bluetooth and many more.
Electrical Properties
Frequency Band: 700 ~ 868 / 1600 ~1730 / 1980 ~ 6000 MHz
Nominal Impedance: 50 ?
Polarization: Linear
V.S.W.R. < 2.0
Gain: 3 dBi
Mechanical Properties
Mounting Method: Screw Type
Connector Type: U.FL
Antenna Dimensions: 192 ± 3 mm
Antenna Color: Black
Cable Length: 50 cm ± 1
Cable Type: RF1.37
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
