Product specifications

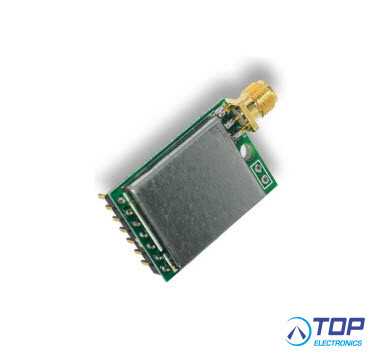

Wireless-Tag WT801
868MHz/915MHz Low power with long range RF module with UART interface
WT801 is a highly integrated low-power half-`duplex RF transceiver module embedding high-speed low-power MCU and high-performance RF chip with LORA modem which is capable of achieving significant longer range than existing RF transceiver based on FSK or OOK modulation. WT801 module provides multiple channel choices, and then users could modify the serial port rate, transmission power, radio frequency and other parameters online.
This module uses LoRa modem to improve the sensitivity up to -137dBm, significantly extending the transmission distance under a low power. So there is no need for repeater and complex communication infrastructure. Due to the transmission distance increasing, users could significantly reduce the usage of repeater, simplify the system design and reduce the production cost.
WT801 module supplies the voltage 2.6-3.6 V with consuming only 13 mA at the receiving mode. WT801 module has four working modes and each one could be switched free. Under the power saving mode, the module consumption is only 1.3uA. The lithium battery with 3.6 V / 3.6 AH could work for several years, which is very suitable for a battery-powered system.
Features
> Single needle interface
> LoRa modem
> Max TX current 120mA@20dBm
> Transmission distance > 5000 m
> Frequency 862MHz to 1020MHz
> High sensitivity up to -137dBm
> Maximum transmission power 20dBm
> Low sleep current 1.3uA
> Receiving mode current 13mA
> Super small size 34.5mm*20mm*6mm
Application
> Wireless water/heat/gas meter reading
> Wireless sensor
> Intelligent instrument and meter
> Intelligent lighting control
> Auto data collection
> Remote control and sensing
> Communication in highway and railway
> Smart building and security
> Robot controlPower distribution network monitoring,
> Power system monitoring
> Wireless warehousing, logistics management
