Product specifications

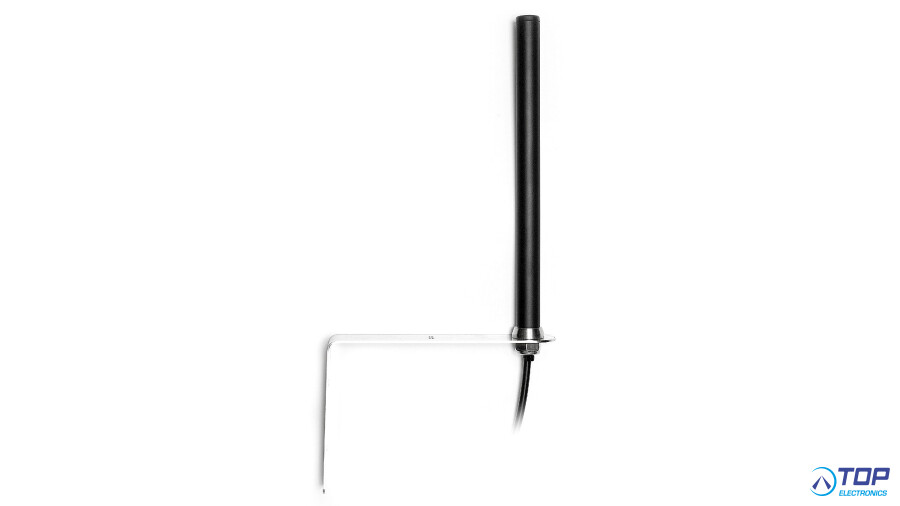

2J2115B-868-B05H Antenna
868 MHz ISM Omni-Directional Ground Plane Independent Antenna

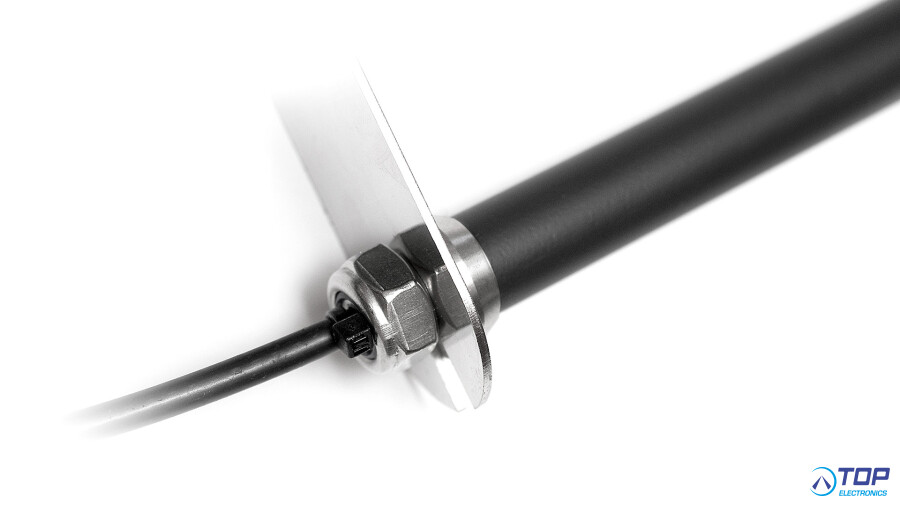

Mounting Wall Mount
Dimensions (mm) 325 × 36 × 155 (220 × Ø 16)
Operating temperature -40 °C to +85 °C
Certificates IP67
Standard color Black
Standards ZigBee, ISM, SIGFOX, LoRa
Frequency 863-870
VSWR ~1.5:1
Efficiency (%) ~65.2
Peak Gain (dBi) ~3.2
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
