Product specifications

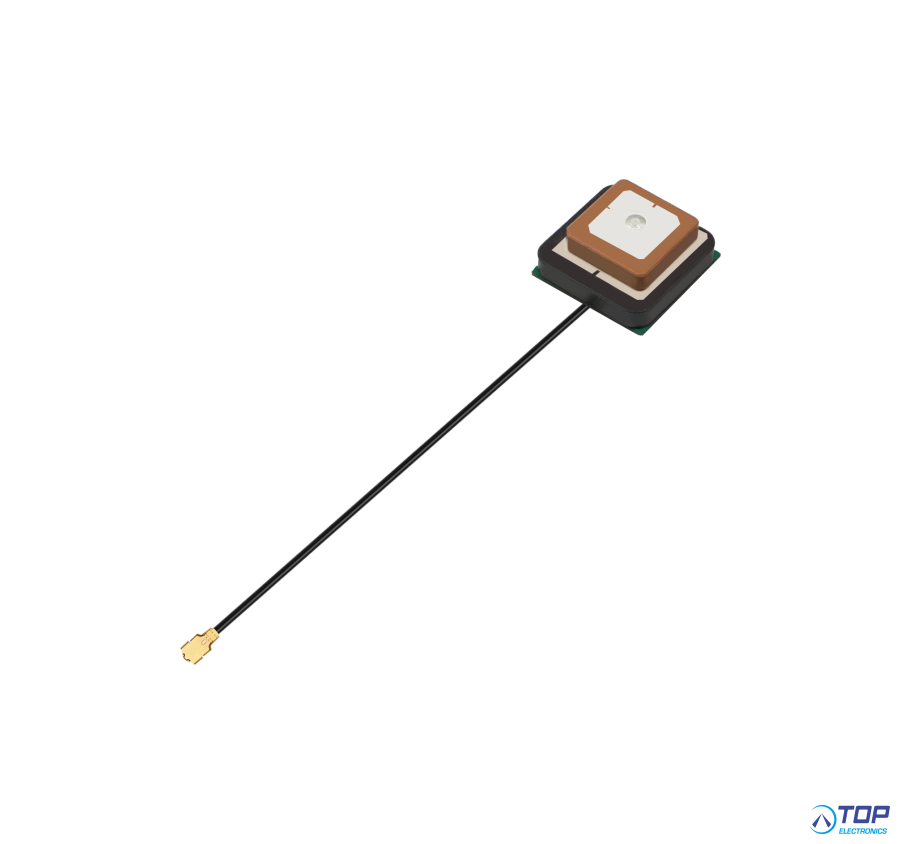

YCGA014AA
Active GNSS L1/L5 cable mount antenna
This Quectel GNSS antenna adopts a diversity of forms to guarantee the most suitable polarization type. Quectel’s positioning products support single-band or multi-band operation modes to meet various high-precision positioning requirements of customers’ products. Quectel also provides both passive and active antennas to satisfy the customer demand for high gain. Such antennas support different installation or connection methods such as pin mount, surface mount, magnetic mount, internal cable, and external SMA. Customized connector type and cable length are provided according to requirements.
Key Features:
- Optimized for GNSS L1
- Cable mount
- LNA gain: 17 dB
Summery:
- Frequency – GPS L5: 1176.45MHz
- Frequency – GPS L1: 1575.42MHz
- Frequency – GLONASS L1: 1602MHz
- Dimensions: 25mm × 25mm × 4mm + 18mm × 18mm × 4mm
- Cable length: 100mm
- Efficiency: up to 47.3%
- RoHS and REACH compliant
- Quectel Wireless Solutions product -
