Product specifications

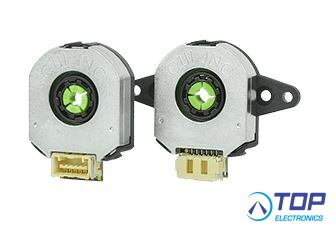

Same Sky - AMT222A-V (14-bit, radial orientation)

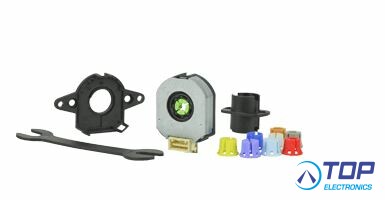

The AMT22-V all-in-one incremental encoder kit offers 18 configurations in one package. The kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and two baseplates with multiple pre-drilled mounting hole patters to mate with a wide range of motors. Coupled with the ability to set zero position via SPI command or Same Sky's AMT Viewpoint GUI, the AMT22-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.
Features
- 18 encoders in one package
- 12-bit absolute (4096) position or 14-bit absolute (16384) position
- 9 different shaft sizes from 2 mm to 8 mm
- Multiple mounting options
- High accuracy
- SPI communication
- Resilient to dust, dirt and oil
- Low current draw
- Simple assembly
- -25 to +70°C temperature range
Specifications
- Input Voltage 3.8 ~ 5.5 Vdc
- Operating Temp. -40 ~ 125°C
- Max. speed 4000/ 8000 RPM
- Same Sky product -
