Product specifications

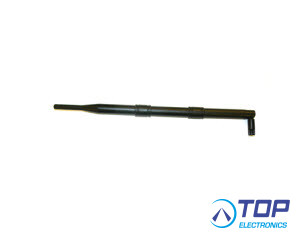

LM254 - 9dBi Antenna RP SMA MOQ 100pcs
The LM254 operates between 2.4Ghz – 2.5Ghz range and offers a full Omni dipole with a 9dB Gain. The antenna has a Reverse Polarity SMA Male Connector. LM Technologies can also offer the female receptacle in order to fit the LM254 9dBi Antenna RP SMA to either a Cable or PCBA.
The RP SMA Antenna 9dBi – LM254 is 390mm long with a diameter of 13.7mm, it has a 0-90 degree fixed hinge and a floating SMA that allows for 360 degree swivel rotation.
This full dipole antenna has 9dBi of gain and 50Ω impedance over 2.4-2.5GHz, VSWR rating is 1.6:1 and a weight of 53g which makes the antenna a very powerful addition to any standard Ghz band application, its true distance we have never been tested in open space as we have found no location with enough distance which offers a suitable test location and ran out of distance at 1.2km.
With the higher output these antenna’s can be too powerful at low ranges and we advise its use to be limited to distance applications, which is where it will work fantastically with just about any of the following technologies.
RP SMA Antenna 9dBi – LM254
- 2.4GHz WiFi (802.11b/g/n)
- 2.4GHz XBee
- 2.4GHz Bluetooth®
- LM Technologies also offer SMA to UFL or SMA to iPEx converters with or without cable that add to the versatility for the LM254 9dBi Antenna RP SMA .
Features
2.4G Dipole 9DBi antenna
SMA Male Reverse Polarity Connector
Matte Black
Benefits
Ideal for our products with SMA antenna connection
Robust design suitable for most environments
Hinged for easy positioning
Low Cost Solution
