Product specifications
ASUS TINKER BOARD 2/2G//SBC MOTHERBOARD
90ME01N0-M0EAY0

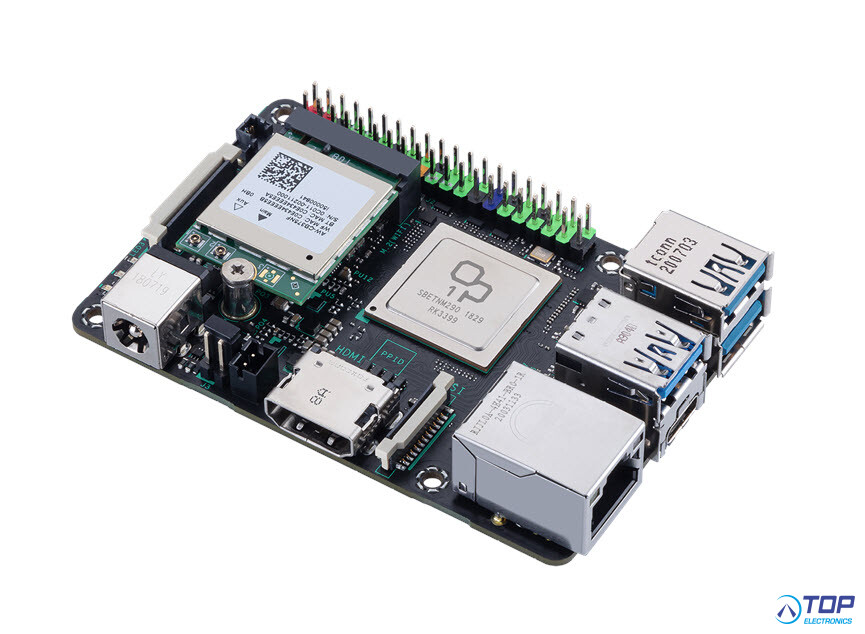

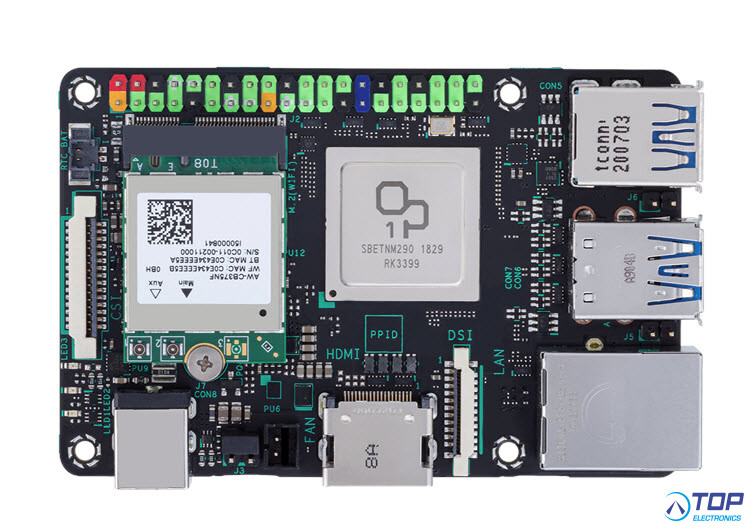

Tinker Board 2
An Arm-based Single Board Computer (SBC), uses Arm big.LITTLE™ technology's 64-bits processor, offers enhanced computing performance with low power consumption.
- Outstanding performance for IoT devices: Powered by 6-core Rockchip RK3399 system on a chip (SoC) with the new 64-bit Armv8 architecture, plus multi-core Mali-T860.
- Easy setup tool: Intuitive software for performance tweaking, with simple three-step initial configuration.
- Pro-grade admin: ASUS IoT Cloud Console for data management and analysis, plus support for firmware over-the-air (FOTA) roll-out.
- Android 10 support: Benefit from better 3D computing performance, support for the Android Neural Networks API 1.2 and Adiantum encryption with 5X-better efficiency.
ULTIMATE PERFORMANCE FOR IOT DEVICES
Enhanced CPU performance
Powered by Arm® 6-core system on a chip (SoC), with the new 64-bit Armv8 architecture — the Rockchip RK3399 — Tinker Board 2 offers significantly improved performance versus compared to other popular SBC boards. It also features Arm big.LITTLE technology, which is a heterogeneous processing architecture that pairs two very different processors together in a single SoC. The big.LITTLE software automates task allocation, ensuring the right CPU core for each process. The upshot is that Tinker Board 2 delivers up to nearly twice the performance of the original Tinker Board, and is significantly faster than many competing SBCs.
Technical specification;
SoC: Rockchip RK3399
CPU: Dual-core Arm® Cortex®-A72 @ 2.0 GHz
Quad-core Arm® Cortex®-A53 @ 1.5 GHz
GPU: Arm® Mali™-T860 MP4 GPU @ 800 MHz
Display: 1 x HDMI™ with CEC hardware ready
1 x USB Type-C® (DP Alt Mode)
1 x 22-pin MIPI DSI (4 lane)
Memory Size: Dual-CH LPDDR4 2GB / 4GB
Storage: Micro SD(TF) card slot (push/pull)
Connectivity: 1 x RTL8211F-CG GbE LAN
1 x M.2 - 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R)
Audio: 1 x HDMI™ audio output
1 x S/PDIF TX pin (from GPIO)
1 x PCM/I2S pins (from GPIO)
USB: 3 x USB 3.2 Gen1 Type-A ports
1 x USB 3.2 Gen1 Type-C® OTG port
Camera Interface: 1 x 15-pin MIPI CSI-2 (2 lane)
Power Connector
(up to 45W): 1 x 12~19V DC Power Input Jack (5.5/2.5 mm)
OS Support: Debian 9 / Android 10
Dimension: 3.37 inch x 2.125 inch (85 x 56 mm)
Environment: Operation temperature: 0℃ ~ 60℃
Non operation temperature: -40℃ ~ 85℃
Non operation humidity: 0% ~ 85% (Non condensing)
EAN/UPC;
4718017922609 / 192876922606
