Product specifications
ASUS TINKER EDGE T//SBC MOTHERMOARD
90ME0140-M0EAY0

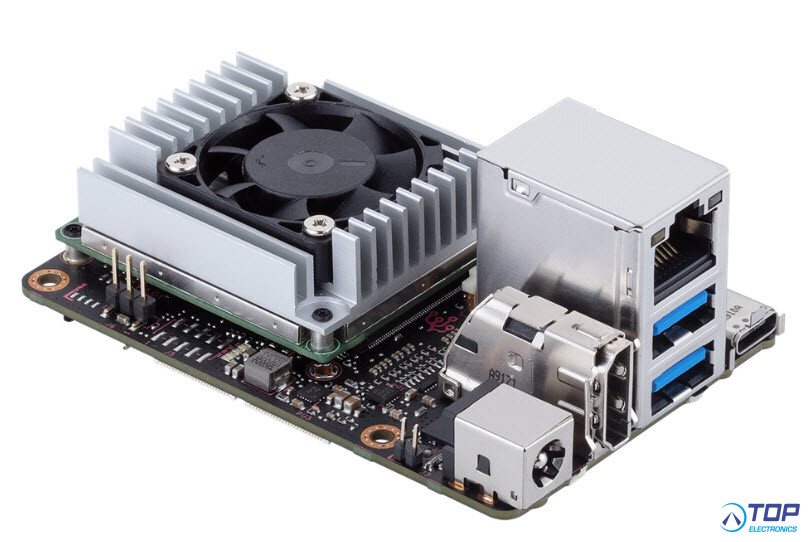

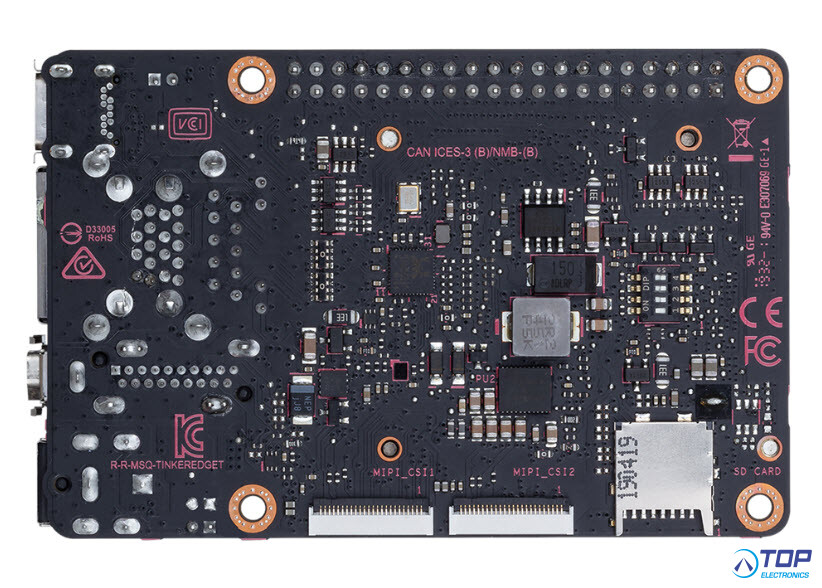

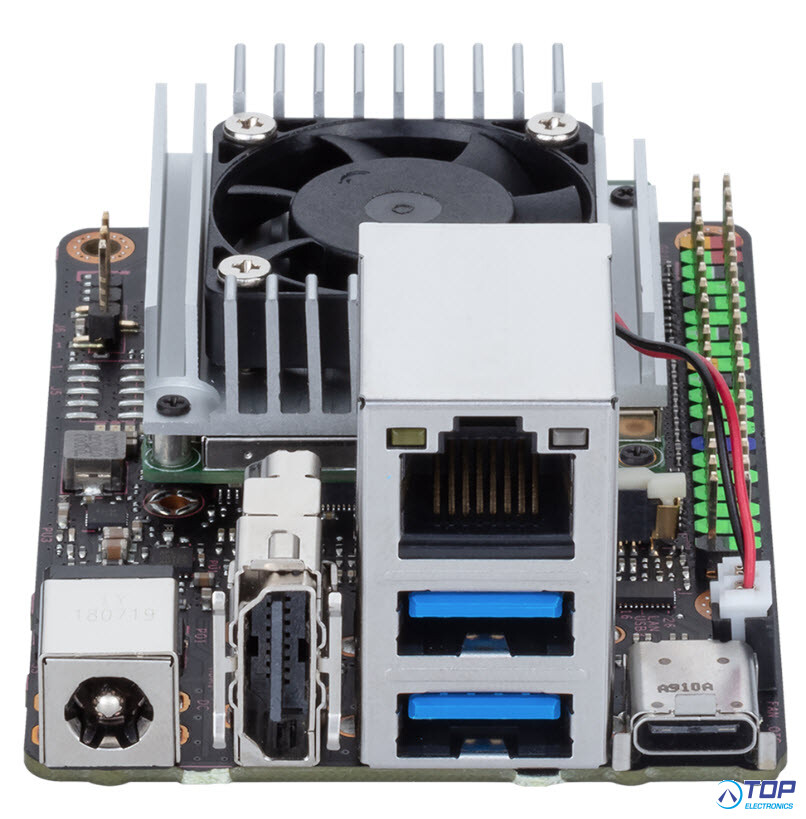

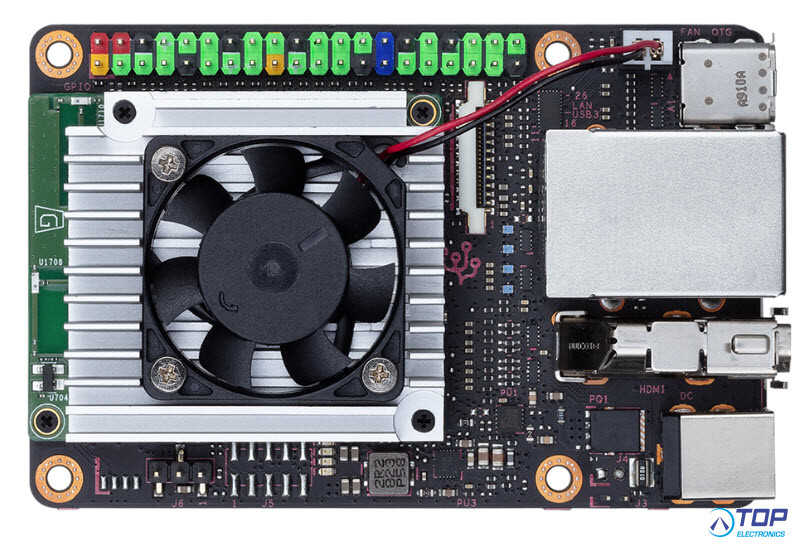

Tinker Edge T
Develop and deploy powerful AI applications
SBC developer board featuring the Google Edge TPU and ARM processor for AI applications, an advanced power design and easy machine-learning model deployment
Google Edge TPU
More connectivity options for developers
Multi-platform tools for easy machine-learning model deployment and image burning
AI accelerator (Edge TPU)
Tinker Edge T is a single-board computer (SBC) specially designed for AI applications. It features the Google Edge TPU, a machine learning (ML) accelerator that speeds up processing efficiency, lowers power demands and makes it easier to build connected devices and intelligent applications. With this onboard ML accelerator, Tinker Edge T is capable of performing four tera-operations per second (TOPS) using only 0.5 watts per unit of computation. It is also optimized for TensorFlow Lite models, making it easy to compile and run common ML models.
Technical specifications:
SoC: NXP i.MX 8M
CPU: LPDDR4 1GB
GPU: GC7000 Lite
NN processor: Google Edge TPU ML accelerator coprocessor
Display: 1 x HDMI with CEC hardware ready
1 x 22-pin MIPI DSI
Memory Size: Dual-CH LPDDR4 1GB
Storage: 8GB eMMC
Micro SD(TF) card slot (push/pull)
Connectivity: 1 x RTL8211F-CG Gb LAN
1 x 802.11 a/b/g/n/ac wireless & Bluetooth 4.2
USB: 2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C OTG
Camera Interface: 2 x 24-pin MIPI CSI-2
Power Connector
(up to 45W): 12~19v DC Power Input Jack (5.5/2.5mm)
OS Support: Debian 9
Dimension: 3.37 inch x 2.125 inch (8.55 cm x 5.4 cm)
Environment: Operation temperature: 0℃ ~ 50℃
Non operation temperature: -40℃ ~ 80℃
Non operation humidity: 0% ~ 85% (Non condensing)
EAN/UPC;
4718017533577 / 192876533574
