Product specifications

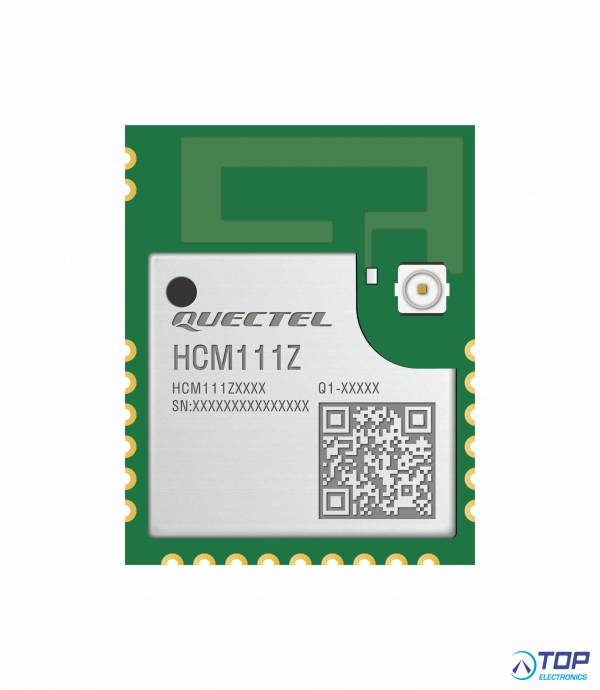

Quectel - MCU Bluetooth HCM111Z
BLE 5.3 Module Compact LCC Package
OVERVIEW:
HCM111Z is a high-performance MCU Bluetooth module launched by Quectel. It boasts a Cortex-M3 processor with a frequency of up to 48 MHz and supports BLE 5.3 with a maximum data rate up to 2 Mbps. The module features built-in 48 KB SRAM and 512 KB flash, ensuring efficient performance.

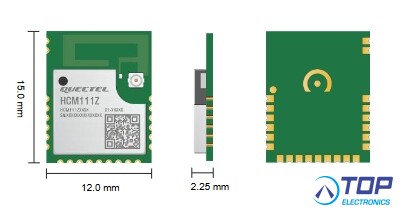

HCM111Z is in a LCC form factor with an ultra-compact size of 15.0 mm × 12.0 mm × 2.25 mm, which optimizes the size and cost for end-products and is compatible with diverse designs.
HCM111Z supports up to 13 GPIOs for UART, SWD, SPI, I2C, ADC, PWM and I2S* functions in QuecOpen® solution, and Bluetooth low power mode, which provides flexibility and versatility for a range of applications, especially in smart homes and industrial IoT scenarios.
HCM111Z has a built-in Codec, which can realize microphone pickup and audio playback, and is suitable for smart devices such as smart voice remote controls, smart toy cars, sports health and home appliances. The multi-connection capability of the module supports dozens of devices to form a communication network, which can be applied in scenarios where multiple devices such as large charging stations and micro inverters are connected. In addition, HCM111Z is also widely used in fields such as meters and sensors.
KEY FEATURES:
- BLE 5.3
- 48 KB SRAM and 512 KB flash
- Built-in Codec (Optional)
- Multi-link network
- RF coaxial connector, external antenna pin, PCB antenna (Optional)
- 13 GPIOs for UART, SWD, SPI, I2C, ADC, PWM and I2S* functions in QuecOpen solution
AVAILABLE VARIANTS:
- External pin antenna
- PCB antenna, build-in codec
- RF coaxial connector
- PCB antenna, without codec
