Product specifications

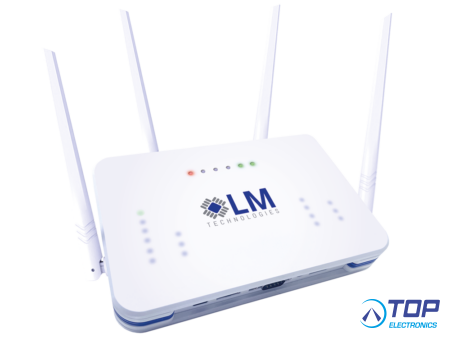

LM3001 - Bluetooth® Industrial Access Point
OVERVIEW
The LM3001 Bluetooth® Industrial access point is a powerful and versatile solution that allows a variety of Bluetooth devices to be connected to a Ethernet network, enabling high speed internet access. The access point is a Class 1 device allowing it to operate at a distance of 100m in open space using the supplied antennas.
The LM3001 can be used in a wide range of applications including asset tracking, building automation and data collection. This makes it suitable for installation in a variety of locations such as warehouses, schools, offices, factories, airports and stadiums.
The access point has quad Qualcomm modules combining Bluetooth® Low Energy (LE) and Classic radios using a dual mode Bluetooth 5.0 stack, plus a high-performance micro-processing unit and embedded Linux operating system.
The access point has a selection of customisation options and can be ordered as pictured or in your own custom design and branding.
FEATURES
- Bluetooth® 5.0 specification
- Supports up to 28 Bluetooth device connections
- TCP Client / server configurable
- 10M/100M adaptive network
- Bluetooth® security authentication
- Frequency range: ISM 2.400 - 2.483GHz
- Web configuration page for easy setup
- Bluetooth® profiles: SPP, HID, LE GATT
- Internet protocols: TCP/IP, HTTP, FTP, ARP, DHCP, PPP
APPLICATIONS
- Asset and personnel tracking
- Smart home, building automation
- Smart health IoT, medical, exercise and fitness
- Enviromental monitoring, device data collection
- Transport and logistics
CUSTOMISATION
- Customised UI available
- Customised housing avalilable
- LM Technologies product -
