Product specifications
SDV01-003 is a small size, high performance, di gital vi bration pick pick-up sensor optimized for picking picking-up people’s voice through bone vibration, which achieves a better signal with high SNR and shield shields the normal ambient sound noise.
Key features:

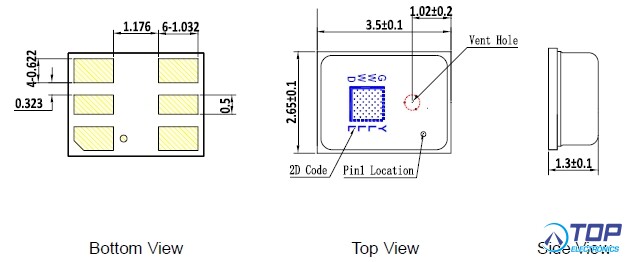

- Package: 6-pin LGA package, 3.5mm x 2.65mm x 1.3mm
- Pb-free, halogen-free and RoHS compliant
Performance:
- PDM digital signal output
- Supply voltage: 1.6 ... 3.6V (VDD)
- Low Current：125 μA
- High sensitivity：-15±2 dBFS/g
- Low Noise: Noise Density ≤2ug/√Hz
- Reflow Solderable
Applications
- Wearable/hearable devices
- Communication in noisy/challenging types of environments
- Hearing aids
- Bone Joint Monitor in health prediction field
- Mechanical Joint Monitor and device conditioning
- Structure Health Monitor
