Product specifications

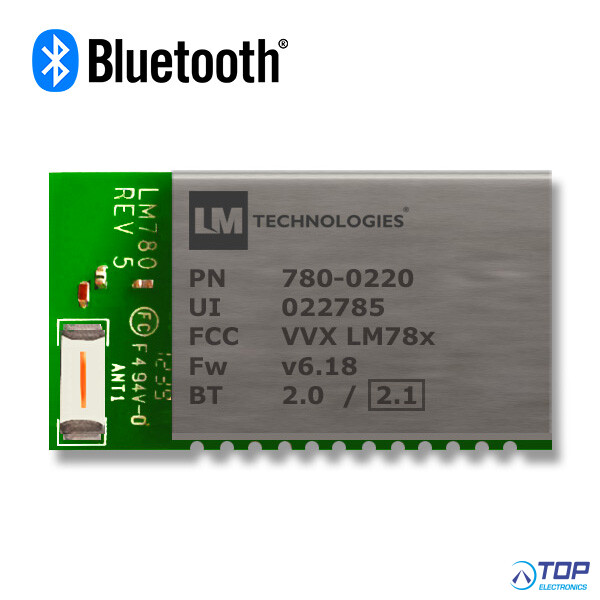

LM780 - Bluetooth Class 2 Module On-Board Antenna
Last stock available, this product is being replaced with LM961
The LM780 Bluetooth Class 2 Module On-Board Antenna is a an integrated module comes with LM’s own tried and tested SPP Stack in either BT2.1 EDR or BT2.0 EDR standards. Its Class 2 antenna will support distances up to 25m while offering a low power consumption, while in sleep mode its output is 0.9mA, and at connection while passing data still only 19mA.
It supports UART & SPI interfaces and accepts a wide voltage input range of between 3.0v to 5.5v, with a footprint of just 15.20 mm x 26.92 mm x 2.0 mm and operates within -20°C to +70°C working temperature range it offers a compact solution.
LM780 Bluetooth Class 2 Module On-Board Antenna SMT Solution.
The Bluetooth Class 2 Module is a surface mount module that has an RF Shield and holds FCC and RTT&E CE Certification with full compliance of RoHs standards.
Ready and easy to design in this total solution is available with full support from LM Technologies who offer a free Design In service, at request we can also alter firmware commands helping integrate our module into a current solution.
The LM780 Bluetooth Class 2 Module On-Board Antenna is available in low volume trays or high volume tape and reel packaging and has been aimed at the most competitive edge of the market.
LM780 Bluetooth Class 2 Module Applications
The LM780 Bluetooth Class 2 Module has been used in a range of products which demonstrate its versatility, Printers, EPOS Terminals, Healthcare Monitoring, etc. LM offer free application development, this gives our customers an App that will communicate with our module, we offer these app's in Java, Android, Windows, Blackberry etc. See our case studies and our weighing scales application for further information. This development will often sit on a smartphone and truly offer a complete solution, all of which is free of charge for customers purchasing 2000 units per annum or more.
- LM Technologies product -
