Product specifications

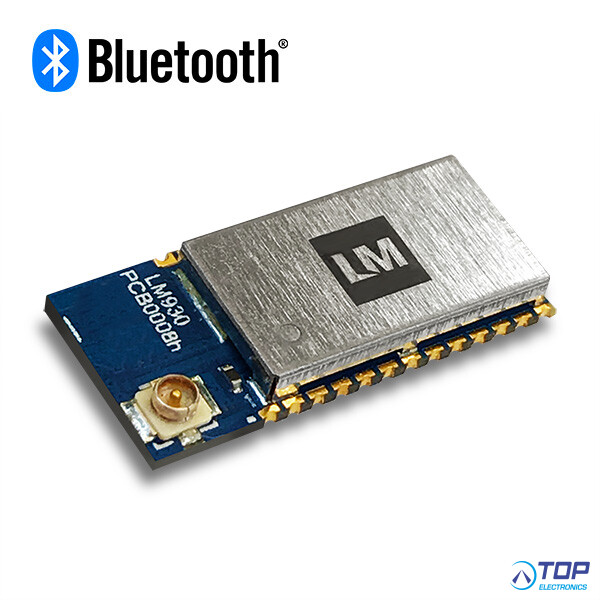

LM930 Bluetooth BLE 4.1 Smart Module UART Class 1 without Antenna (Ufl), (LM930-0633) - MOQ=60pcs
The LM930 Bluetooth® low energy module is designed for use within embedded systems. It is implemented as a peripheral device within a product, while saving the developer valuable PCB space.
The LM930 enables wireless communication with other nearby Bluetooth® low energy devices (e.g. iOS and Android) using a highly power efficient connection. The transmission output power ranges from 0 dBm to 9 dBm and can be configured to provide an extended battery life or a longer communication range.
This single core standalone module combines a Bluetooth® low energy radio using a Bluetooth® v4.1 stack, plus a microcontroller with 512 kB EEPROM for running the application. The LM930 incorporates 27 pin outs including UART and I2C for interfacing with a wide range of peripheral devices like sensors. It’s SMT side and bottom pads allow for easy manufacture and placement into your product.
Application firmware and configuration settings can be preloaded to the module before supply. LM offer bespoke integration into your product by supporting your developer. We can also assist in the development of new IoT applications for the module. IoT applications such as Serial over GATT, iBeacon™ and Key Fob (with RGB LED Controller) are available with the module’s LM53X development kits. The firmware is customisable to meet your requirements.
FEATURES
- Bluetooth® v4.1 specification
- 14 mA Current Consumption (at 0 dBm Tx Output Power)
- IPEX Connector
- -9 dBm Tx Output Power (Max) and -92 dBm Rx Sensitivity
- Over-the-Air Upgrade (OTAU) available
- Application Firmware Support
- IoT Applications available including Serial over GATT,
- Eddystone™ Beacon and Cloud Sensor & Cloud Collector
- Fully integrated module with no additional components required
- PC and UART
- 9 digital and 3 analogue I/O (10-bit ADC)
- Wake-up interrupt and Watchdog timer
- 4 PWM channels

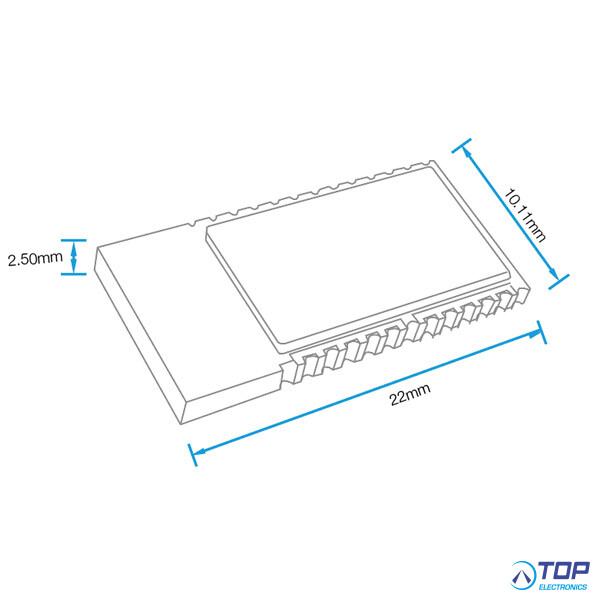

- 22mm x 10.11mm x 2.50mm
- SMT Side and Bottom Pads for easy production
LM930 Bluetooth Smart Module BLE 4.1
With a battery added to the LM930 and placed into a housing, this module can also act as an iBeacon device awaiting instruction/ data, or to pass on instruction/data automatically when in range of other BLE enabled devices.
ORDERING OPTIONS
- LM930-0634 - MOD SMT PROG BT4.1 SMART uE, Fw.3.16v ,9.dBm - PCS
- LM930-0635 - MOD SMT PROG BT4.1 SMART FW uE v3.11 9.dBm - IPEX TRAY
- LM930-0633 - MOD SMT PROG BT4.1 SMART FW uE v3.11 9.dBm - IPEX T&R
- LM Technologies product -
