Product specifications
Features
- Bluetooth LE 5.0 compliant
- Fully integrated RF front-end
- 16 MHz ARM® Cortex® M0 CPU
- 256 KB ROM, 128 KB RAM, 4 KB OTP
- SWD for interactive debugging
- Integrated Power Management Unit (PMU)
- DC/DC Buck-Boost Converter
- RF Wakeup Receiver
- I2C, SPI, UART, PWM Peripherals
- Configurable GPIOs
- Quad SPI with Execute in Place (XIP)
- Application ADC (10-bit)
- Digital microphone input (PDM)
- Keyboard matrix controller (KSM)
- Quadrature decoder for mouse input (QDEC)
- 16 MHz / 32.768 kHz Crystal Oscillator
- AES 128 hardware
- True random number generator (TRNG)
- Sensor Hub

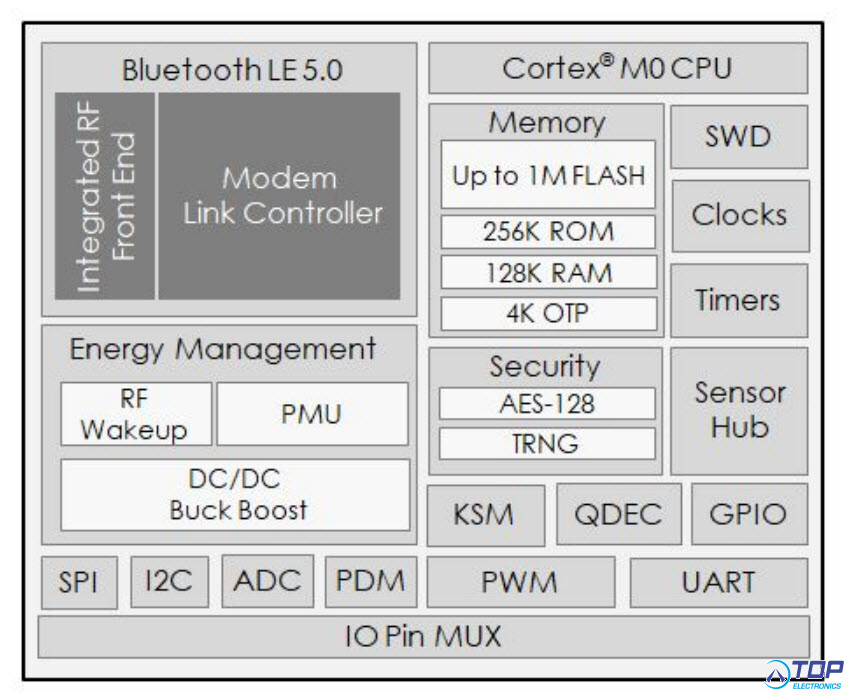

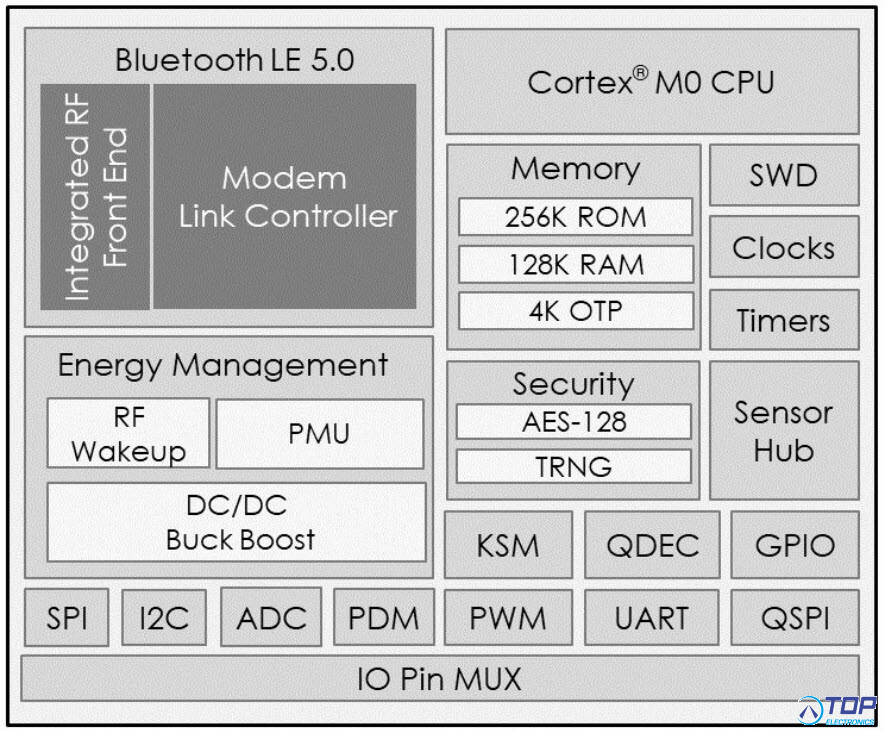

The ATM2201/ATM2221 is part of a family of extreme low-power Bluetooth® 5 system-on-a-chip (SoC) solutions. This Bluetooth Low Energy SoC integrates a Bluetooth 5 radio with an ARM® Cortex® M0 processor and state-of-the-art power management to enable maximum lifetime in battery operated devices. The extremely low power ATM2 series SoC is

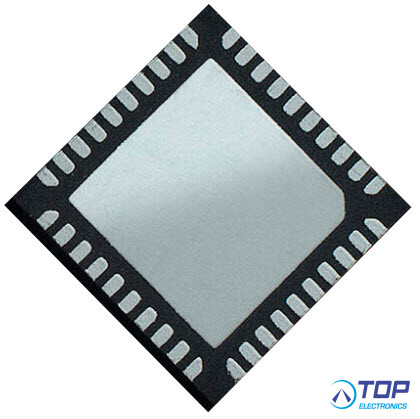

designed with an extensive set of peripherals and flexible I/O to support a wide variety of applications across the consumer, commercial, and industrial Internet of Things (IoT) markets. The ATM2 series is available in a 40 pin QFN package (ATM2201) or 64 pin DR-QFN package (ATM2221) supporting additional I/O pins.
M2 Series

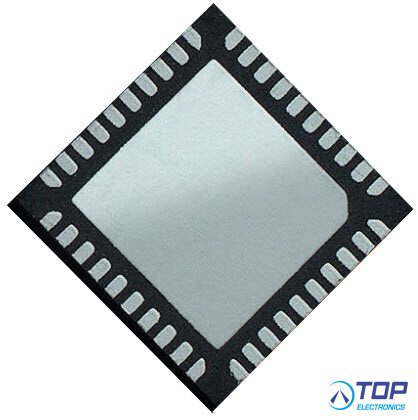

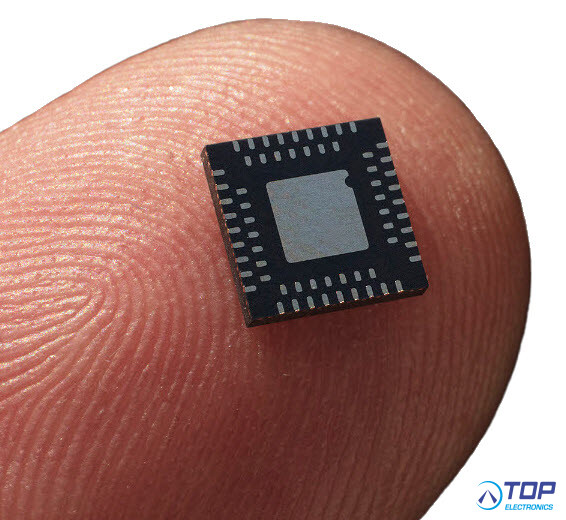

The Atmosic M2 Series solutions are Bluetooth® 5 standard-compliant and enhanced with Lowest Power Radio and On-demand Wake Up technologies to provide 10 to 100 times lower power. The series is suitable for a broad array of applications such as wearables, personal and asset trackers, beacons, remotes, locationing devices, keyboards and mice. The M2 Series offers flash and non-flash options, as well as 5×5 QFN and 6×6 DRQFN packaging options.
