Product specifications

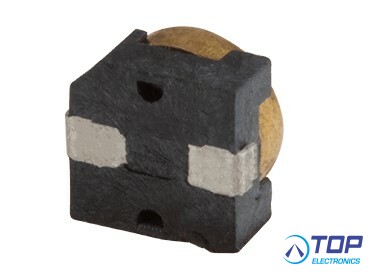

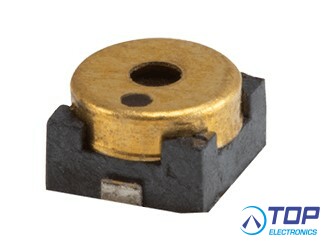

Same Sky - CMT-322-65-SMT-TR Magnetic Audio Transducer Buzzer.
The CMT-322-65-SMT-TR is a magnetic transducer buzzer housed in a compact 3.2 mm x 3.2 mm surface mount package.

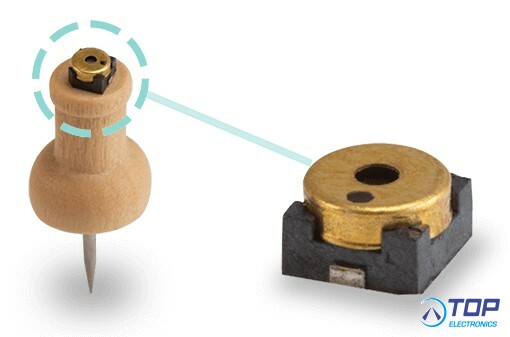

Featuring a low profile of 2 mm, this micro buzzer is among the smallest in the industry and ideal for portable equipment applications.
SPECIFICATIONS
Driving Circuit : No
Rated Voltage : 3Vo-p
Sound Pressure (dB) : 65
Mounting Style : Surface Mount
Curr. Consumption (mA) : 120
Operating Temp Range (°C) : -20 ~ 70
Shape : Square
Washable : No
Dimensions LxWxH (in) : 0.12 x 0.12 x 0.07
Dimensions LxWxH (mm) : 3.2 x 3.2 x 2
- Same Sky product -
