Product specifications
Tensility 10-00420

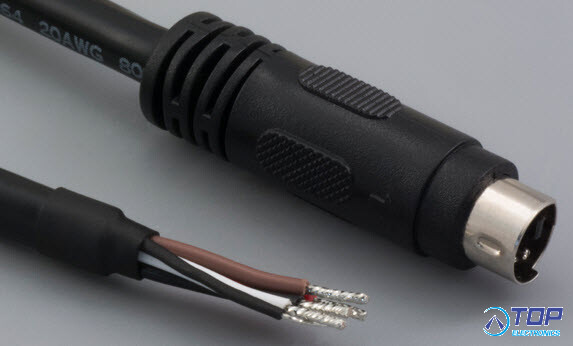

Cable, 1830 mm, 4P mini-DIN male 50-00157, to stripped tinned, 20 AWG, UL2464 30-00024, shielded
Specifications:
- shield: foil
- operating temperature: 80 °C
- AWG: 20
- # of conductors: 4
- jacket material: PVC
- cable length: 1830 mm
- wire outer diameter: 6.0 mm
- cable style: round
- color: black
- UL style: 2464
- voltage rating: 12 V
- current rating: 2.0 A
- connector # of contacts: 4
- orientation: 180°
- Tensility product -
