Product specifications
101D-TAAB-R01

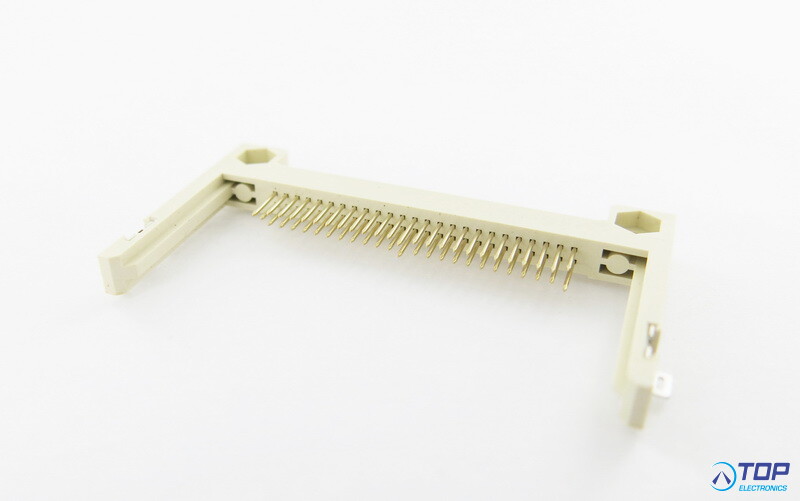

CF Socket Slim type, Top Mount
ELECTRICAL
Current Rating: 0.5AMP
Voltage Rating: 100V AC/DC
Contact Resistance: 40mΩ
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 500V AC for 1 min.
MECHANICAL
Durability: 10000 Cycle
Insertion Force: 28.8N
Extraction Force: 4.9N
ENVIRONMENTAL
Operating temperature range: -40℃~+85℃
Storage temperature range: -40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature: 260℃ 10 Sec.
- Attend Technology product -
