Product specifications

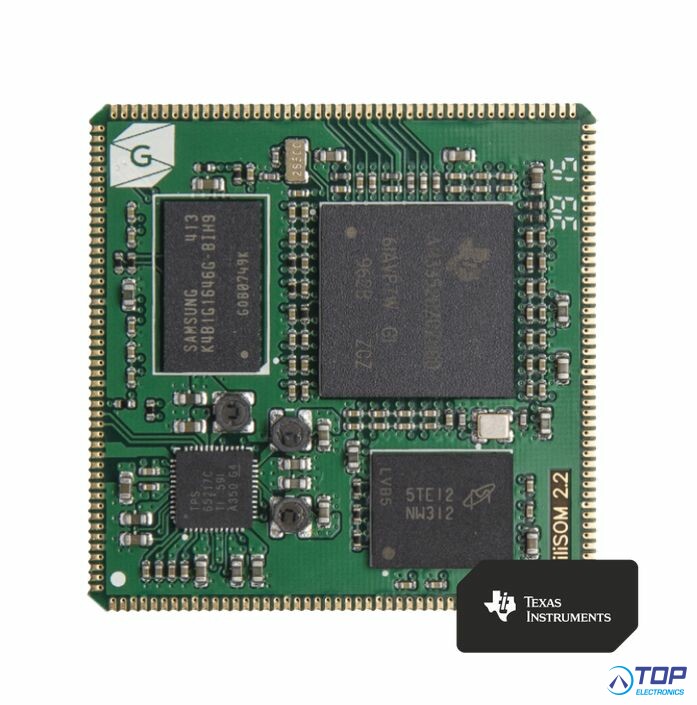

ChiliSOM - System On Module for IoT
ChiliSOM is ideal for applications requiring a high degree of density and high computational power at extremely low power consumption. The module is designed to operate with all major operating systems. It is preconfigured for Linux and Android. With a rich set of peripherals, the module is designed to cater for a wide range of applications.
Fields of application:
- IOT
- M2M
- Industrial
- Medical devices
- Home automation
- Cloud solution
- HMI
Specifications:
- Processor: TI AM335X, ARM Cortex A8 up to 1GHz with NEO
- Memory: DDR3 up to 512MB
- Storage: NAND Flash 256MB
- Package: 184-pin 0.8mm pin raster
- Size: 40mm x 40mm x 3mm
- Power supply: Single 5V DC or 3.7V Li-Ion/Li-Po battery cell
- Battery charger: Integrated single Li-Ion cell battery charger
- Multimedia: Parallel 24bit Display Interface (up to 2048x2048) optional PowerVR SGX530 3G Graphics Engine
- OS support: Linux, Android
- Operating temperature: Commercial: 0 to +70°C, Industrial: -20 to +85° C
- Connectivity: 2 x 10/100/1000 Ethernet, 2 x USB2 OTG, 2 x CAN, 6x UART, 2 x McASP, 2x SPI, 3x I2C, 3 x eHRPWM, ADC (12-bit, 8-ch)
- Security: Crypto Engine(AES with DPA, TDES/SHA/RSA), Tamper Monitor, Secure Boot, SIMV2/EVMSIM X 2, OTF DRAM Encryption
Applications:
- Industrial Automation
- Home/Building Automation
- Medical Appliances
- HMI panels
- Internet of Things
- Metering Gateways
- Consumer Electronics
- GRINN sp. z o.o.-
