Product specifications
WuT 58665

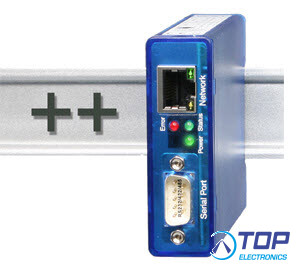

Com-Server ++
1 serial port to the network - transparent, fast, universal
The Com-Server ++ is the new universal, expanded function member of the Com-Server family and successor to the Com-Server Highspeed Industry 58631. In addition to the proven standard operating modes and functions it offers significantly improved support when using serial protocols thanks to its high processing speed and new packeting options. In addition, serial received data can be made available to multiple stations in the network.
Connections and displays:
- Serial port: 1x RS232-, RS422-, RS485 port, selectable, DB9 connector plug, 50 to 230.400 baud, 7,8 data bits, 1,2 stop bits, Parity No, Even, Odd, Mark, Space, Flow control No, RTS/CTS, Xon/Xoff
- Serial modes: RS232, RS422 4-wire bus master, RS485 4-wire bus master, RS485 4 wire with automatic control, RS485 2 wire with automatic control
- Network: 10/100BaseT Autosensing/Auto-MDIX, RJ45, IPv6 on request
- Galvanic isolation: Network connection min. 1500 V
- Supply voltage: Power-over-Ethernet (PoE) or DC 12V .. 48V (+/-10%) or AC 18Veff .. 30Veff (+/-10%)
- Supply connection: Plug-in screw terminal, 5.08mm spacing, Labeled "L+" and "M"
- Current consumption: PoE Class 1 (0.44 - 3.84W) or for external supply: typ. 55mA @24V DC, max. 70mA @24VDC
- Displays: 1 LED Power, 1 LED Status, 1 LED Error, 2 LEDs Network Status
Housing and other data:
- Housing: Plastic compact housing for top-hat rail mount, 105x22x75mm (LxWxH)
- Enclosure rating: IP20
- Weight: approx. 105g
- Ambient temperature: Storage: -40..+70°C, Operating 0..+60°C (70°C on request)
- Permissible relative humidity: 5..95% RH, non-condensing
- MTBF: 637,767 h @25°C per MIL-HDBK-217
- Life expectancy: > 25 years at 25°C ambient temperature
- Scope of delivery: 1x Com-Server ++, 1x Quick Guide, 1x product CD with COM Port Redirector, WuTility management tool, manual, German/English
- Wiesemann & Theis product -
