Product specifications
WuT 58034

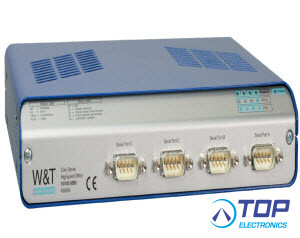

Com-Server Highspeed Office 10/100BT, 4x RS232/422/485
Network via direction connection: 4 serial highspeed ports onto the network
The Com-Server offers everything required for the direct connection of serial interfaces to the computer network. All protocols are included (see box / applications at the end of the product datasheets). The serial interfaces can switched between the standards RS232, RS422 and RS485. The serial and the network parameters are set via Telnet, ARP/RARP, SNMP or also via an Internet browser and web-based management.
COM Port Redirector
The W&T COM Port Redirector for Windows 9x/NT/2000/XP/2003 also gives serially operating Windows programs the ability to communicate over the network. Virtual COM ports are installed on the system which behave like standard COM ports with respect to the applications. Communication with the terminal device is now however over the network and a Com-Server
Connections and displays:
- Serial port: 4x RS232/422/485 ports, selectable, Optional: 20mA/TTY (extra cost), DB9 connector plug, 50 to 230.400 baud, 7,8 data bits, 1,2 stop bits, Parity No, Even, Odd, Flow control No, RTS/CTS, Xon/Xoff
- Serial modes: RS232, RS422 4-wire bus master, RS485 4-wire bus master, RS485 4 wire with automatic control, RS485 2 wire with automatic control
- Network: 10/100BaseT Autosensing, RJ45, IPv6 on request
- Galvanic isolation: min. 500 volts
- Power supply: 100-240V / 50-60 Hz
- Supply connection: Internal power supply with C8 male plug
- Current consumption: typ. 2.5W
- Displays: 1 LED Power, 4 LEDs Status, 4 LEDs Error
Housing and other data:
- Housing: Metal housing, 168x212x40mm (LxWxH)
- Enclosure rating: IP20
- Weight: approx. 1355g
- Ambient temperature: Storage: -20..+60°C, Operation: 0..+50°C
- Permissible relative humidity: 5..95% RH, non-condensing
- Scope of delivery: 1x Com-Server Highspeed Office, 1x Euro power cable, 1x Quick Guide, 1x product CD with COM Port Redirector, manual, German/English, etc.
- Wiesemann & Theis product -
