Product specifications

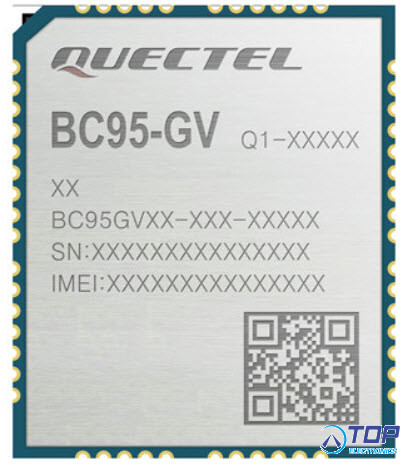

Quectel BC95-GV
Multi-band LTE Cat NB2 Module with Ultra-low Power Consumption
BC95-GV is a high-performance NB-IoT module which supports multiple frequency bands of B1/ B3/ B5/ B8/ B20/
B28 with extremely low power consumption, integrated BLE 5.0. The ultra-compact 23.6 mm × 19.9 mm × 2.2 mm
profile makes it a perfect choice for size sensitive applications. Designed to be compatible with Quectel GSM/GPRS
M95 module and NB-IoT BC95 module in the compact and unified form factor, it provides a flexible and scalable
platform for migrating from GSM/GPRS to NB-IoT networks.
BC95-GV adopts surface mounted technology, making it an ideal solution for durable and rugged designs. The low
profile and small size of LCC package allow BC95-GV to be easily embedded into space-constrained applications and
provide reliable connectivity with the applications. This kind of package is ideally suited for large-scale manufacturing
which has strict requirements for cost and efficiency.
Features
- Compact-sized multi-band NB-IoT module
- Ultra-low power consumption
- Super high sensitivity
- Low voltage power supply: 2.1–4.2 V
- Integrated BLE 5.0*
- Abundant embedded Internet service protocols
- Supported QuecOpen®* to save the MCU
- eSIM reserved
- Compatible with Quectel GSM/GPRS M95 and NB-IoT BC95 modules, easy for future upgrading
