Product specifications
DS86
IP42 Rating
Vzense DS Series CW-iToF RGBD Camera
The Vzense DS Series 3D depth cameras use SONY’s IMX570 DepthSense chip and 940nm infrared light, making them ideal for both indoor and outdoor use. The ToF camera has a resolution of 640×480 with a frame rate of up to 15 fps and an FOV of 67° horizontally and 50° vertically. The RGB camera features a resolution of 1600×1200, a global shutter, and an FOV of 70° horizontally and 50° vertically. The detection range is 0.15m to 5m, with an absolute accuracy of better than 1% and a relative accuracy of around 0.5%.
High Acurracy - Dual Frequency - HDR Mode Supporting

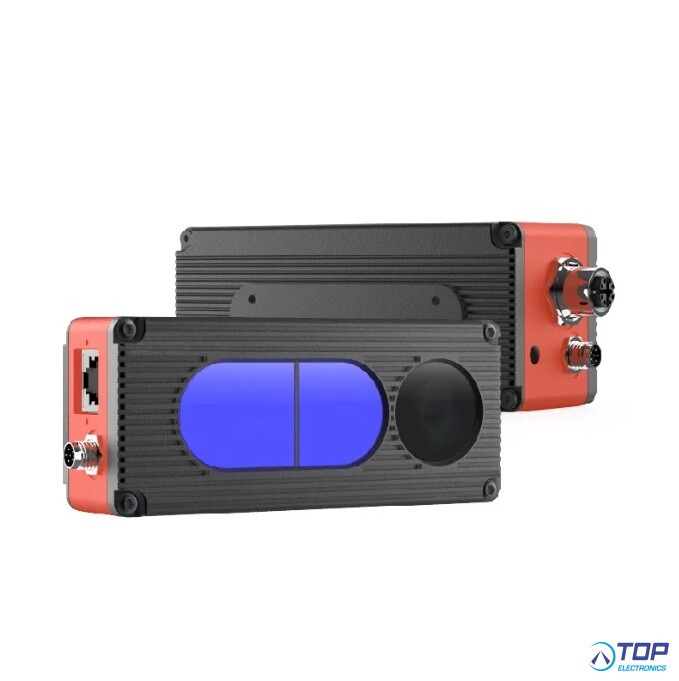

The DS series includes two models: DS86 and DS87.
Here are the key differences:

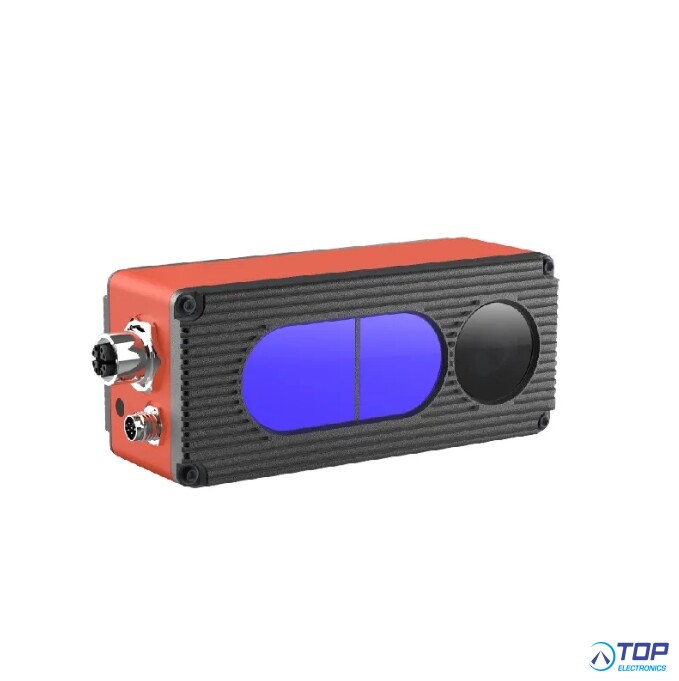

- IP Rating: DS86 has an IP42 rating, while DS87 has an IP67 rating due to its M12+M8 aviation plug connections.
- Power Supply: Only the DS87 supports Power over Ethernet (PoE).

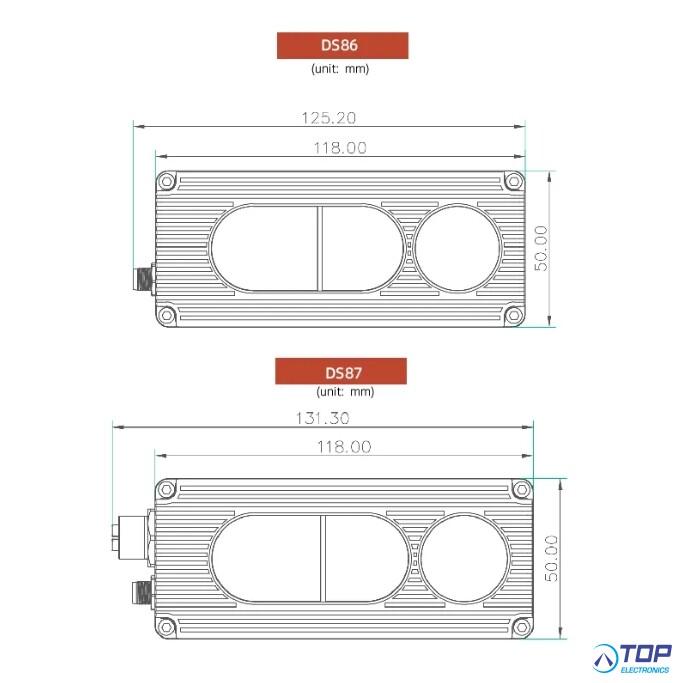

- Size: DS86 is slightly smaller than DS87.
Specifications:
- ToF Sensor: Sony IMX570 CMOS , 640*480
- ToF Frame Rate: Max. 15fps
- Emitter: 940nm VCSEL*2
- ToF Field of View: 67°(H)* 50°(V)
- RGB Module: Global Shutter, 1600*1200
- RGB Field of View: 67°(H)* 50°(V)
- Power Supply: 12V~24V DC

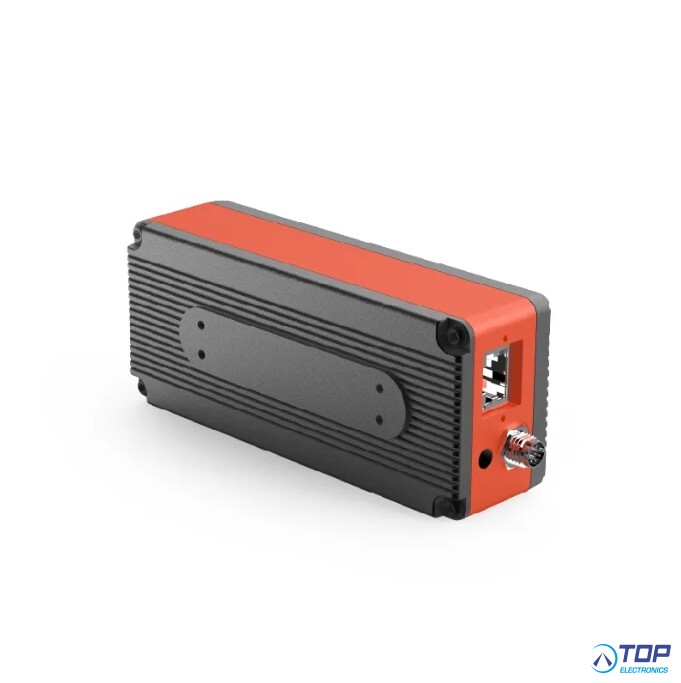

- Physical Connection: RJ45+M8 Aviation Plugs
- Communication: 1000M ethernet&RS485
- Output Format: 16bit(depth)+8bit(IR)+JPEG(RGB)
- Accuracy Error: 1%~2%
- Work Range: 0.3~4.5m
- Work Temperature: -20°C ~ 50°C
- Operation System & Platform: Windows/Linux/Arm Linux/ROS1/ROS2
- SDK Support: C/C++/Python
- IP Rating: IP42
