Product specifications
DC Fan
San Ace 9GA0924H402

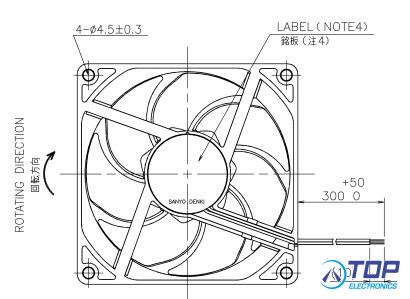

Dimensions 92x92x25mm
Features:
- Rated voltage: 24V DC
- Operating voltage 20.4V DC ~ 27.6V DC
- Rated current: 0.09A at 24V DC
- Rated speed: 3300 min. at 24V DC
- Insulation Resistance: 10 min. at 500V DC
- Dielectric strength: 1 minute at 500V AC, 50/60 Hz
- Operating temperature: -20C to +70C
- Sound presurre level: 31 dB(A)
- Mass: approxiately 125 g
- Material: Plastics
- Bearing System: two ball bearings
These fans have ribs and pulse sensors
- Sanyo Denki product -
