Product specifications

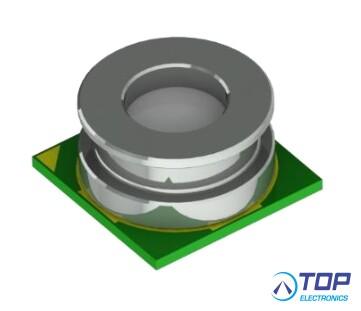

The SPL17-002 is a miniaturized Digital Gauge Pressure Sensor with a high accuracy and a low current consumption. The SPL17-002 is both a pressure and a temperature sensor. The pressure sensor element guarantees a high precision during temperature changes. The small package makes the SPL17-002 ideal for any devices.
The SPL17-002‘s internal signal processor converts the output from the pressure and temperature sensor elements to 24-bit results. Each pressure sensor has been calibrated individually and contains calibration coefficients. The coefficients are used in the application to convert the measurement results to true pressure and temperature values.
Key features:
- Gauge Pressure range: 0 ... 40KPa
- Temperature Range: 0…+70°C
- Supply voltage: 1.7 ... 3.6V (VDD), 1.2 ... 3.6V (VDDIO)
- Absolute accuracy: typ. ±0.1KPa (0~40KPa),
- Temperature accuracy: ± 2°C (0~70°C)
- Pressure temperature sensitivity: typ. < 1Pa/K
- Measurement time: typ. 4 ms
- Average current consumption: ＜3 μA, Standby current: ＜100nA
- I2C interface, Embedded 24-bit ADC
- Pb-free, halogen-free and RoHS compliant
Typical applications:
- Blood pressure monitoring
