Product specifications

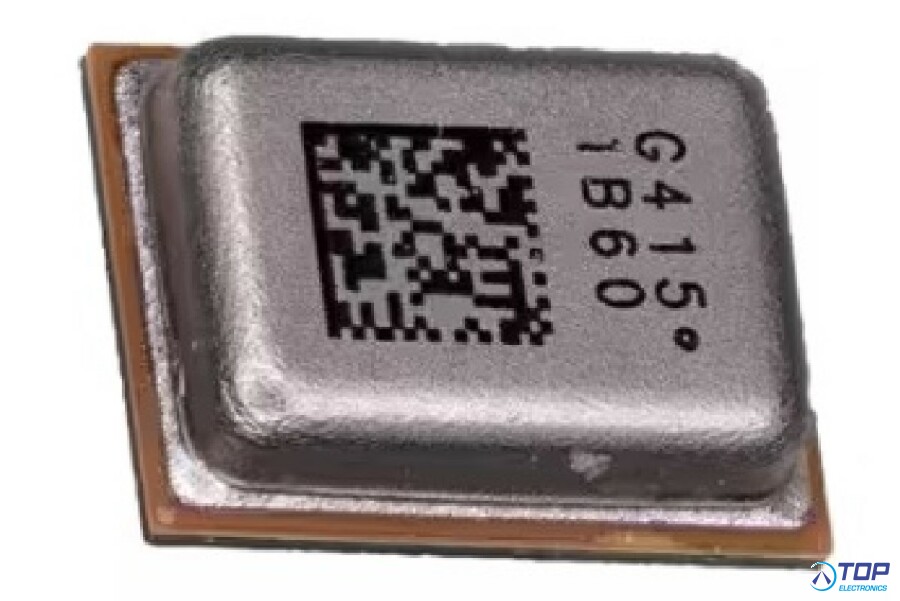

Digital MEMS Microphone - SD18OB371-062
MEMS MIC which is able to endure reflow temperature up to 260℃ for 50 seconds can be used in SMT process. It is widely used in telecommunication and electronics device such as mobile phone, laptop computers, and other portable electronic devices etc.
FEATURES:

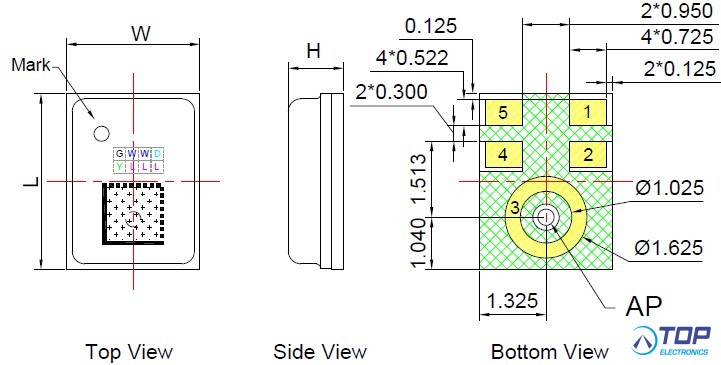

Size (L*B*H): 3.5*2.65*0.98 mm
Sensitivity: -37±1dB
SNR (Typ): 65dB
AOP (Typ): 132dBSPL
LFRO: 28Hz
Current: 850uA
- Goermicro product -
