Product specifications

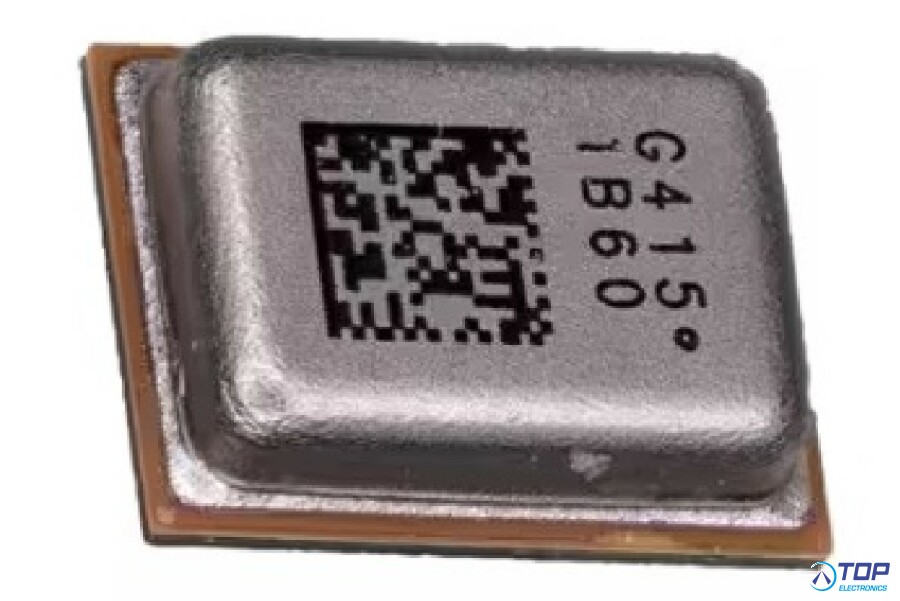

High performance, low power Digital MEMS Microphone - SD18OB371-167
INTRODUCTION:
MEMS MIC which is able to endure reflow temperature up to 260℃ for 50 seconds can be used in SMT process. It is widely used in telecommunication and electronics device such as mobile phone, laptop computers, and other portable electronic devices etc.
FEATURES:

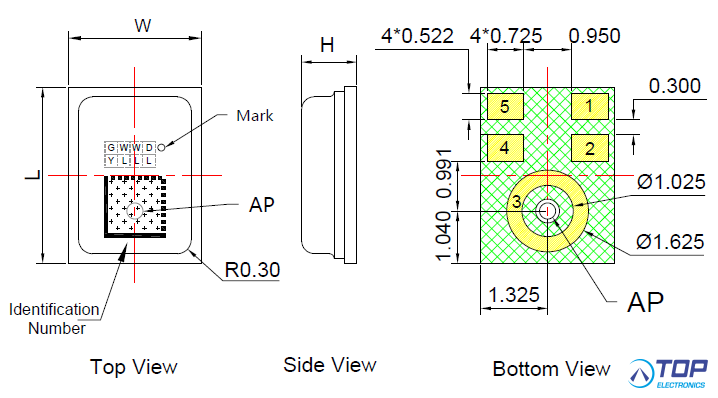

Size (mm) 3.5*2.65*1.0 mm
Sensitivity -37±1dB
SNR (Typ) 68.5dB
AOP (Typ) 128dBSPL
LFRO 40Hz
Current 400uA
