Product specifications

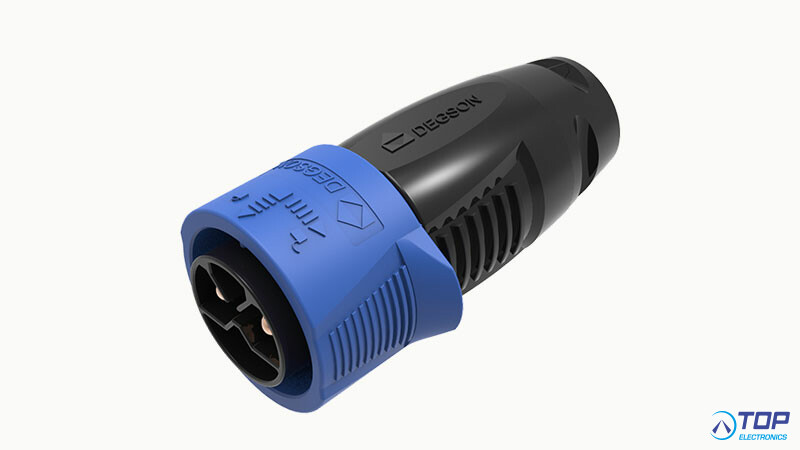

PM-EBBL-2105-M - E-bike motor circular, straight plug - 25050000003
Straight angle plug with direct plug in and out, rated current:50A; Rated voltage:110V DC; Withstand voltage:500V AC; Insulation resistance ＞ 100M Ω; Protection grade meet IP67 when mated; Mechanical life ≥ 3000 times; Pull out force ＞ 25N; Operating temperature: - 40 ~ 105 ℃; Salt spray resistance : 72h; Flame retardant grade:UL94-v0; Environmental protection:RoHS. Color: lock ring - blue
