Product specifications

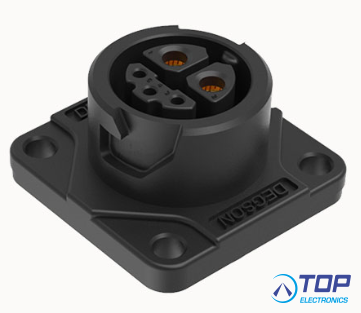

SA-EBBM-2003-F - E-bike motor , socket with direct plug - 25060000002
Socket with direct plug in and out.Rated current:20A; Rated voltage:110V DC; Withstand voltage:500V AC; Insulation resistance > 100M Ω; Protection grade meet IP67 for socket only; Mechanical life ≥ 3000 times; Pull out force > 20N; Operating temperature: - 40 ~ 105 ℃; Salt spray resistance : 72h; Flame retardant grade:UL94-v0; Environmental protection:RoHS.
