Product specifications

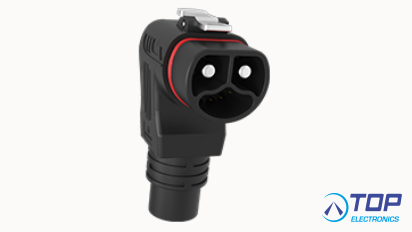

RM-EBBH-2006-M-1000 - E-bike power, charging/discharging plug - 25080000001
Charging and discharging plug at the end of electric motorcycle battery, with rated current of 100A~120A; Rated voltage 72V DC; Withstand voltage 1500V AC; Insulation resistance ＞ 500M Ω; Protection grade: IP67 when mated; Mechanical life ≥ 3000 times; Pull out force ＞20N; Working temperature: - 40 ~ 105 ℃; Salt spray resistance for 72h; Flame retardant grade ul94-v0; Environmental protection:RoHS
