Product specifications

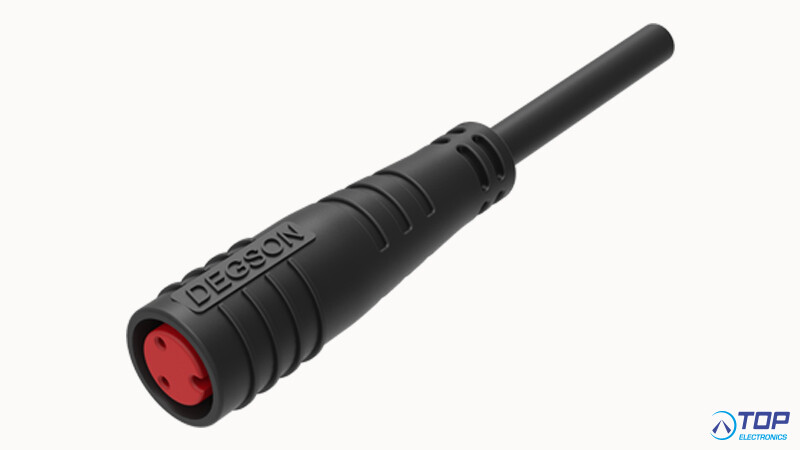

SM-EBS-0002-F-L300 - E-bike signal connector, 2 pins, female - 25020000004
Female connector with direct plug in and out.Rated current:2A; Rated voltage:48V DC; Withstand voltage:300V AC; Insulation resistance ＞ 30M Ω; Protection grade meet IP66 when mated; Mechanical life ≥ 100 times; Pull out force ＞ 25N; Operating temperature: - 40 ~ 105 ℃; Salt spray resistance : 48h; Flame retardant grade:UL94-v0; Environmental protection:RoHS. Color: Insert insulation - red.
