Product specifications
KD035QVFBN212

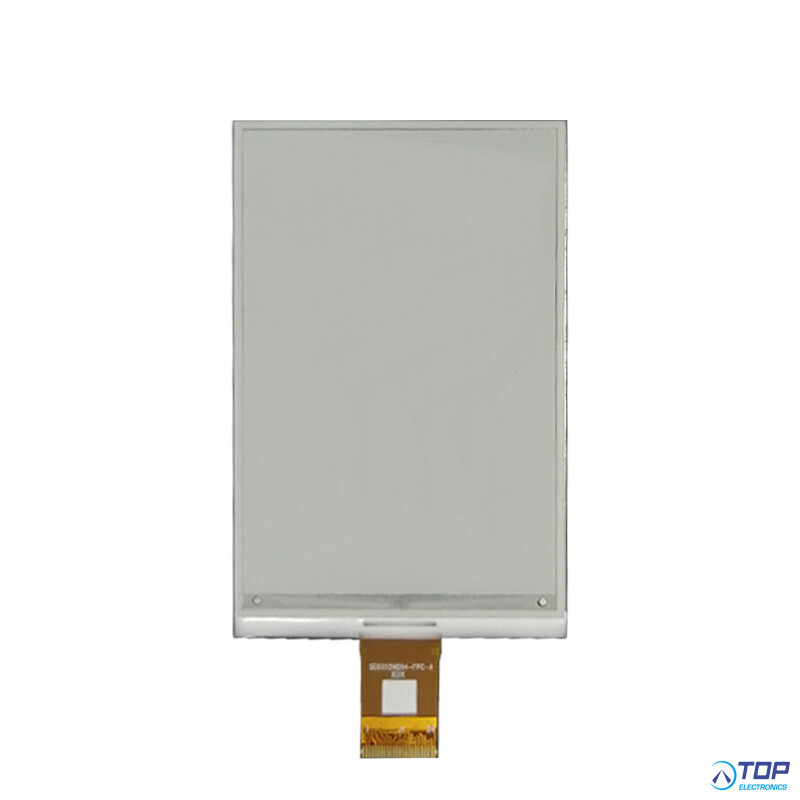

3.5" E-paper display
1. LCD name: 3.5inch240*360 E-paper display, UC8253, MCU&SPI interface with ultra low consumption Landscape, portrait modes
2. Part No.: KD035QVFBN212
3. Other model Part No.
4. Compatible part No.:
5. Display type: IPS
6. Display colors: black and white
7. Resolution (pixels): 240*360
8. Pixel pitch:
9. Viewing direction: IPS
10. Controller IC: UC8253
11. Display mode: black and white
12. Overall size: 54.41*84.70*1.14mm
13. Viewing area:
14. Active Area: 49.67*74.51mm
15. Luminance: No backlight, reflective panel with 700~1000lux
16. Contrast: 8:1
17. Interface type: MCU/SPI interface
18. Pin NO.: 24pins
19. Pin pitch: 0.5mm
20. Connecting type: plugging type
21. Input voltage: 3V
22. Backlight type and color: No backlight, black and white
23. Backlight: No backlight
24. LED Life span: 50000h
25. Operating temperature range: -25----60°C
26. Storage Temperature range: -30----60°C
27. Certification of registration: ISO9001 ISO13485 IATF16949
28. Compliant: RoHS
