Product specifications
KD042HVFSN002
4.2" E-paper display

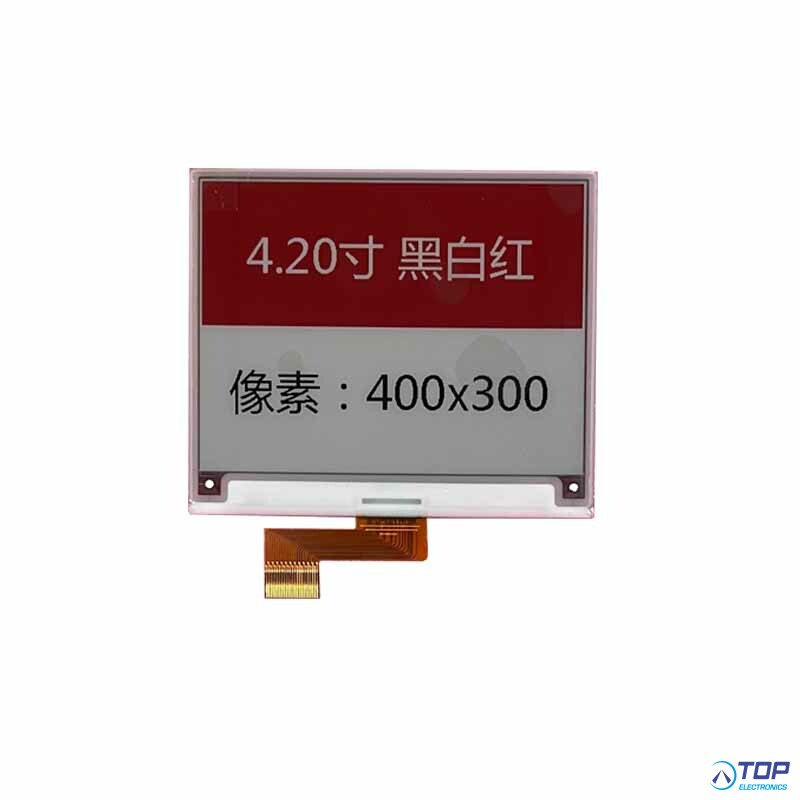

1. LCD name: 4.2inch 400*300 UC8276 SPI interface black white red high reflectance E-paper display
2. Part No.: KD042HVFSN002
3. Other model Part No.
4. Compatible part No.:
5. Display type: EPD,B / W /R
6. Display colors: B / W /R
7. Resolution (pixels): 400*300
8. Pixel pitch: 0.212(H) x 0.212(V)
9. Viewing direction: Ultra wide viewing angle
10. Controller IC: UC8276
11. Display mode: EPD,B / W /R
12. Overall size: 91(H) x 77(V) x 0.9(D)
13. Active Area: 84.8(H) x 63.6(V)
14. Luminance: 1200～1500LUX
15. Contrast:
16. Interface type: 3Wire / 4Wire SPI
17. Pin NO.: 24pins
18. Pin pitch: 0.5mm
19. Connecting type: plugging type
20. Input voltage: 3V
21. Backlight type and color:
22. Backlight:
23.LED Life span: 50000h
24.Operating temperature range: -0 -- 40 °C
25.Storage Temperature range: -20 -- 60°C
26.Compliant: RoHS
27.Certification of registration: ISO9001,ISO13485,IATF16949
