Product specifications
Quectel L76 EVB KIT
Evaluation Kit for L76 GPS receiver module
Applicable Modules
L76 series EVB includes L76, L76-L and L76B versions.
Key Features
- Compact size and easy to use
- Abundant functinal interfaces
- Micro-USB interface both for power supply and data transfer
- Visualization for module's working status via LEDs
- External battery is available
EVB Kit Includes
- One-page instruction
- Micro-USB cable
- GNSS active antenna (3.3V)
- CD-ROM containing: Evalution tools, USB driver, Documentation

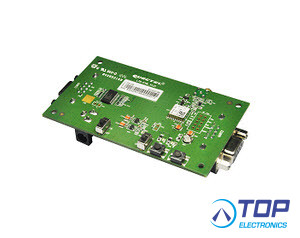

EVB Componments and Interface
A:GPS UART port
B:Antenna interface
C:Adapter interface
D:Test points
E:L76 module
F:Power switch
G:Indication LEDs
H:MCU UART port
EVB Kit including
A: GPS active antenna (3.3V)
B: DC5V/2A power adapter
C: Serial port cable (USB 2.0)
- Quectel Wireless Solutions product -
