EK49 - Evaluation Kit for the MP165

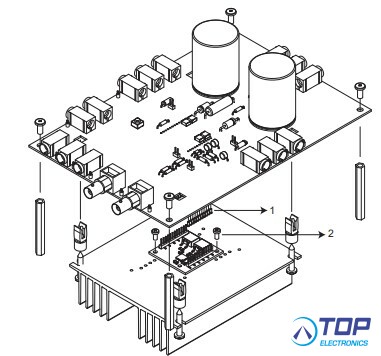

This easy to use kit provides a platform with good circuit board layout and grounding to evaluate the MP165 Power Amplifier.
The evaluation board provides options to install a load capacitor and series resistor to evaluate the MP165 performance with a printhead.
All necessary components are provided with the kit.
External connections to the evaluation kit can be made through the connectors at the edges of the circuit.
The circuit provides a line termination of 50Ω.
- Apex Microtechnology product -
