Product specifications

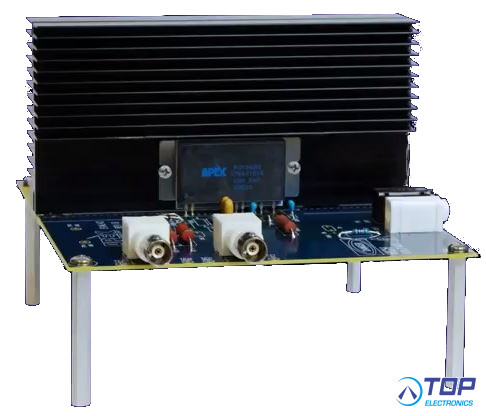

EK66 - Evaluation kit for PA194GN
This easy to use kit provides a platform with good circuit board layout and grounding to evaluate PA194
Power Amplifier. The evaluation board provides options to install a load capacitor and series resistor to eval‐
uate the PA194 for a piezo load. All necessary components are provided with the kit. External connections to
the evaluation kit can be made through the connectors at the edges of the circuit. The circuit provides a line
termination of 50Ω.
** The Evaluation Kit will be supplied without an amplifier, please order this separately **
- APEX Microtechnology product -
