Product specifications

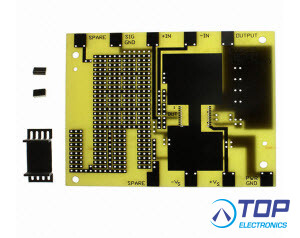

EK13 - Evaluation Kit for PA341DF & PA44DFX
** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **
Fast and easy breadboarding of circuits using the PA341XX/PA441XX is possible with the EK13 evaluation kit.
The amplifier may be surface mounted directly to the PC board. The PA341DF/PA441DF is soldered to a 2-square inch area of foil on the PC board for heat sinking. This foil heat sink is connected to –Vs. Connections are provided for required power supply bypassing, phase compensation components, and a current limit resistor. A large area for component mounting provides flexibility and makes a multitude of circuit configurations possible.
- APEX Microtechnology product -
