Product specifications

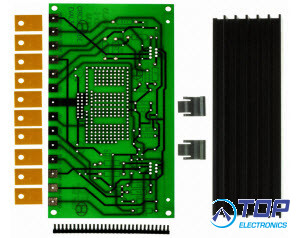

EK33 - Evaluation Kit for PA75CX
** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **

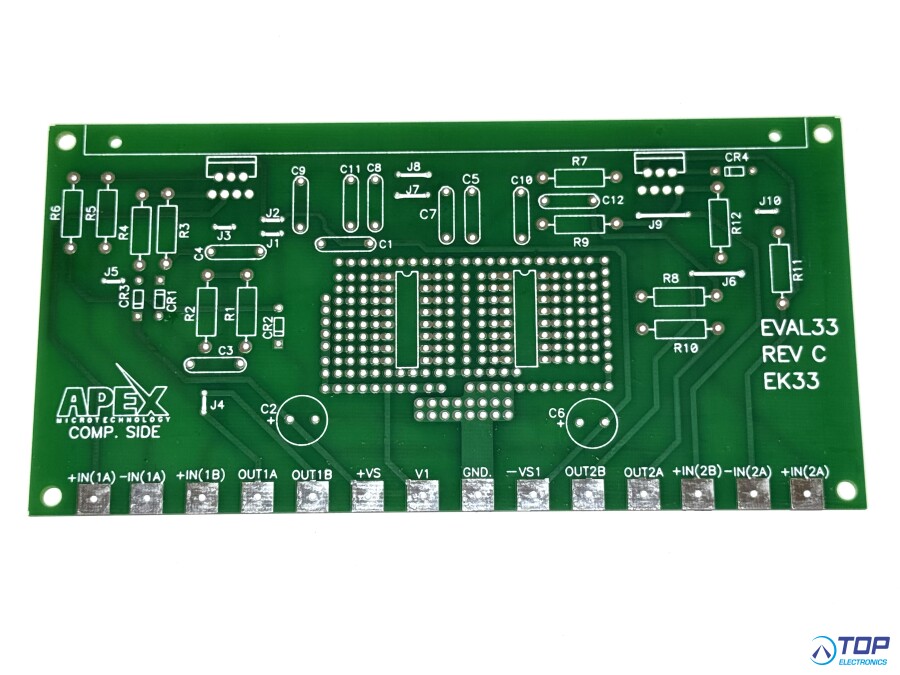

Fast, easy breadboarding of circuits using the PA75CX are possible with the EK33 PC board.
Mounting holes are provided and the provision for standard banana jacks simplifies connection and testing. Components are labeled on both sides of the board for ease in probing. This kit is not suitable for PA75CC or PA75CD. A multitude of circuit configurations are possible, so only several component locations have specific functions and will usually be necessary.
- APEX Microtechnology product -
