Product specifications

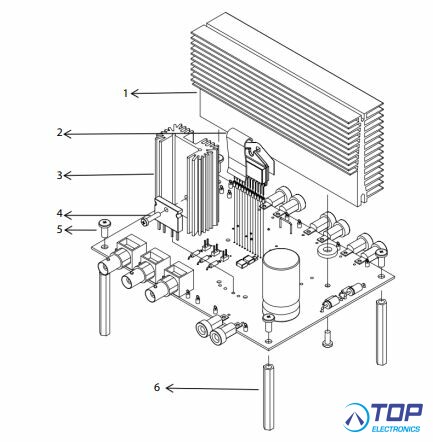

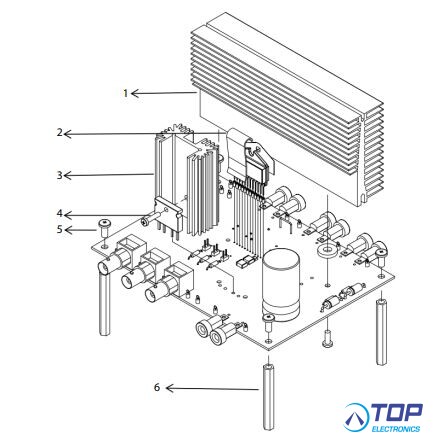

EK43 - Evaluation Kit for SA110DP
** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **
This easy to use kit provides a platform with good circuit board layout and grounding to evaluate the SA110.
The evaluation board provides a flexible prototyping area which can be used to connect the SA110 to additional external circuitry for providing input PWM to the SA110.
All necessary components are provided with the evaluation kit (except SA110DP; this needs to be ordered separately).
External connections to the evaluation kit can be made through the connectors at the edges of the circuit.
The circuit provides a line termination of 50Ω for input signals provided through a function generator.
- APEX Microtechnology product -
