Product specifications
EK84 - Evaluation Kit for the SA111PQ
This kit contains everything needed for rapid prototyping with the SA111PQ Operational Amplifier.

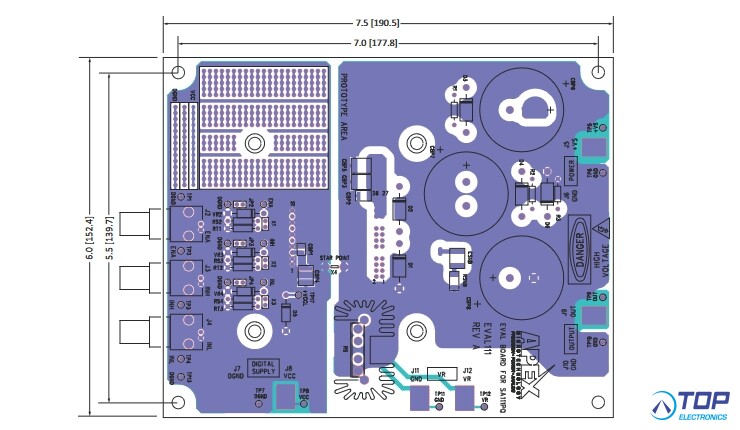

This easy to use kit provides a platform with good circuit board layout and grounding to evaluate the SA111.
The evaluation board provides a flexible prototyping area which can be used to connect the SA111 to additional external circuitry for providing input PWM to the SA111.
All necessary components are provided with the evaluation kit. External connections to the evaluation kit can be made through the connectors at the edges of the circuit. The circuit provides a line termination of 50Ω for input signals provided through a function generator.
- APEX Microtechnology product -
