Product specifications

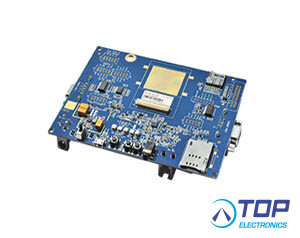

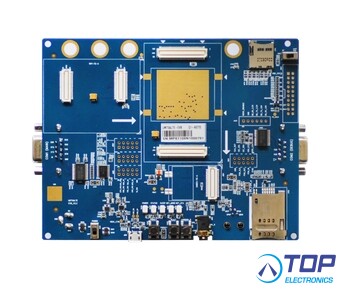

UMTS & LTE EVB Kit
** This EVB KIT contain NOT the actual module or Test Boards, so that needs to be ordered separately **
Quectel supplies UMTS & LTE EVB for designers to develop applications based on Quectel UMTS & LTE modules and Wi-Fi modules. This EVB can test basic functionalities of these modules.
EVB KIT INCLUDES
- USB to UART converter cable X 1
- USB cable X 1
- RF cables X 4
- Main Antennas X 2
- GNSS Antenna (passive) X 1
- Wi-Fi Antenna X 1
- Earphone X 1
- USB 2.0 to RS232 driver and USB driver disk X 1
- ALC5616 and TLV320AIC3104 codec boards X 2
- Bolts and nuts for assembling EVB X 1 (4 for each type)
- Instruction sheet of giving instructions for EVB connection, details of EVB accessories, etc. X 1
APPLICABLE MODULES
- Automotive Wi-Fi & Bluetooth & UWB: AF20
- LPWA: BG600L-M3, BG77, BG770A-GL, BG772A-GL, BG773A-GL, BG95 series, BG950A-GL, BG951A-GL, BG952A-GL, BG953A-GL, BG955A-GL, BG96
- LTE Standard: AG35-CEN, EC20-CE, EC200A series, EC200S series, EC200U series, EC21 series, EC25 series, EG21-G, EG21-GL, EG25-G, EG25-GL, EG91 series, EG912N-EN, EG912U-GL, EG912Y series, EG915N series, EG915U series, EG95 series
- Wi-Fi & Bluetooth: FC20, FC21, FC30R, FC80A, FC905A, FC909A
- Quectel Wireless Solutions product -
